Description:

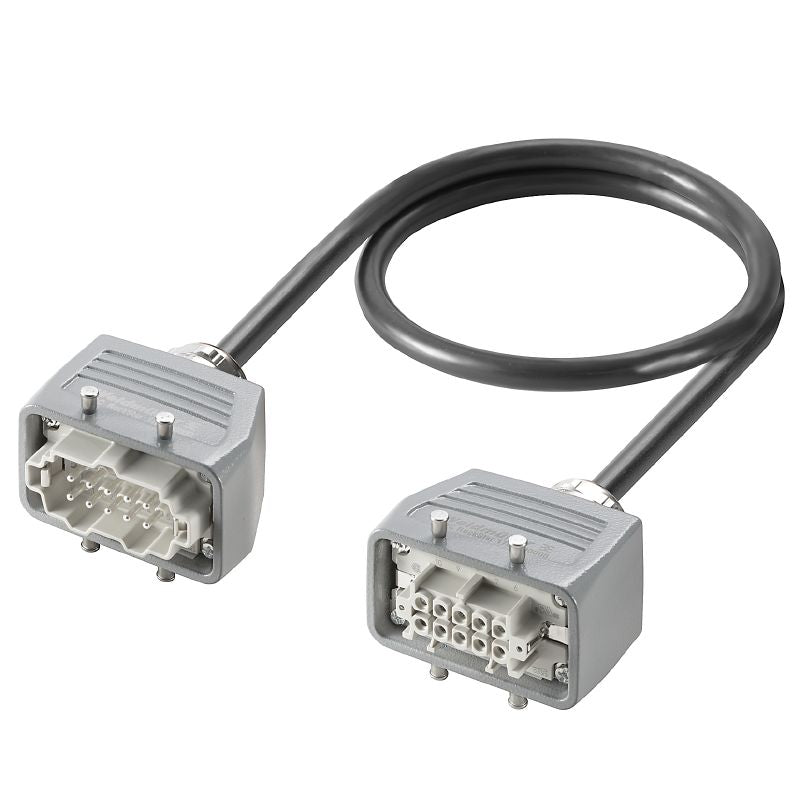

Introducing a robust connector assembly ideal for your electrical needs, featuring pin and socket connectors compatible with Lapp ÖLFLEX CLASSIC 110 BK 12G15 cables or similar models This assembly includes 10 poles with a diameter of 12 mm and operates effectively in temperatures ranging from -40 °C to 80 °C Weighing in at 1,73712 grams, it meets RoHS compliance standards, ensuring environmentally safe use.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Protection degree IP65.
•Diecast aluminium housing.
•Includes both pin and female connectors.
•Suitable for moving and stationary applications.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 10 |
| Pin arrangement | 1:1, numbered cores |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 5 m |
| Core cross-section | 1.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 12G1.5 or similar |
| Number of wires | 12 |
| Sheath material | PVC |
| Sheathing colour | black |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 |
