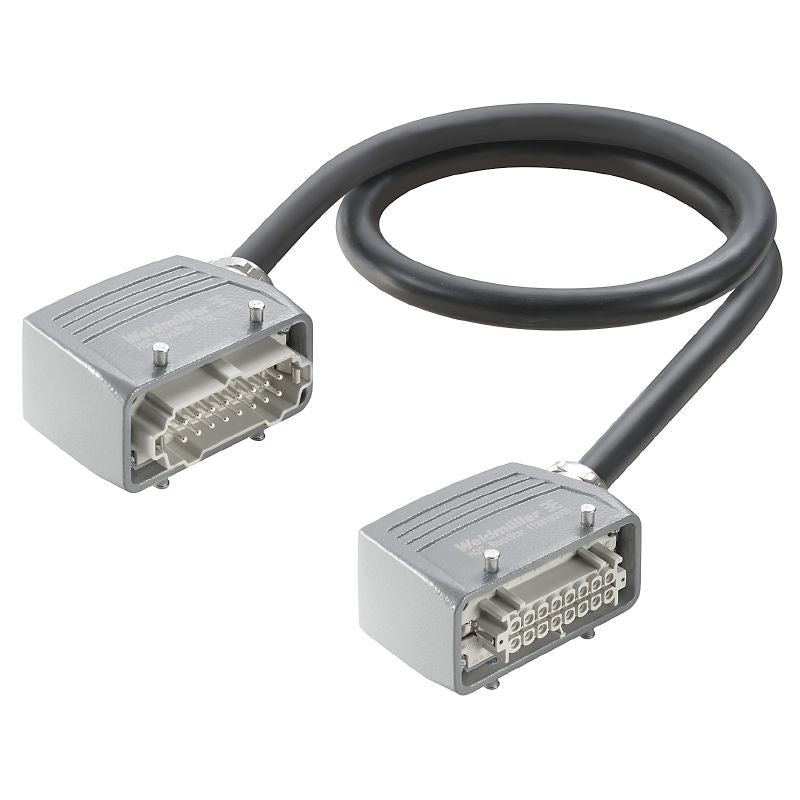

2712340500 - 16-Pole Heavy-Duty Connector, 5m Length, Pin and Socket Design
2712340500 - 16-Pole Heavy-Duty Connector, 5m Length, Pin and Socket Design
SKU: SKU: 2712340500 Download PDF
- 2712340500 - 16-Pole Heavy-Duty Connector, 5m Length, Pin and Socket Design
- 2712340500 - 16-Pole Heavy-Duty Connector, 5m Length, Pin and Socket Design
Couldn't load pickup availability
Description:
Equip your setup with this robust connector assembly, featuring a pin and socket configuration that meets the standards of Lapp ÖLFLEX CLASSIC 110 BK 18G15 or similar models Boasting 16 poles, this assembly is unshielded yet built to withstand challenging environments, functioning efficiently in temperatures ranging from -40 °C to 80 °C Ensure reliable connectivity with this durable solution designed for versatility and resilience.
Features and Benefits:
•Connector 1 and Connector 2 both have angled cable entry.
•Housing made from diecast aluminium.
•IP65 protection degree.
•Nominal voltage of 500 V.
•Bending radius minimum for movement is 10 times the cable diameter, and 4 times for stationary.
•Halogen-free insulation of PVC.
•Black sheath material.
•Cable length is 5m.
•Temperature range for moving is from -15 °C to 70 °C and for stationary is from -40 °C to 80 °C.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| RoHS Compliance Status | Compliant with exemption |
| REACH SVHC | Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3 |
| Connector description | Connector 1: Angled cable entry, Diecast aluminium housing, 16 poles, Series HE, Size 6, Type Pin; Connector 2: Angled cable entry, Diecast aluminium housing, 16 poles, Series HE, Size 6, Type Female |
| Core cross-section | 1.5 mm² |
| Number of wires | 18 |
| Outside diameter | 14.4 mm |
| Sheathing colour | black |
| Cable type | Lapp ÖLFLEX CLASSIC 110 BK 18G1.5 or similar |
| Insulation | PVC |
