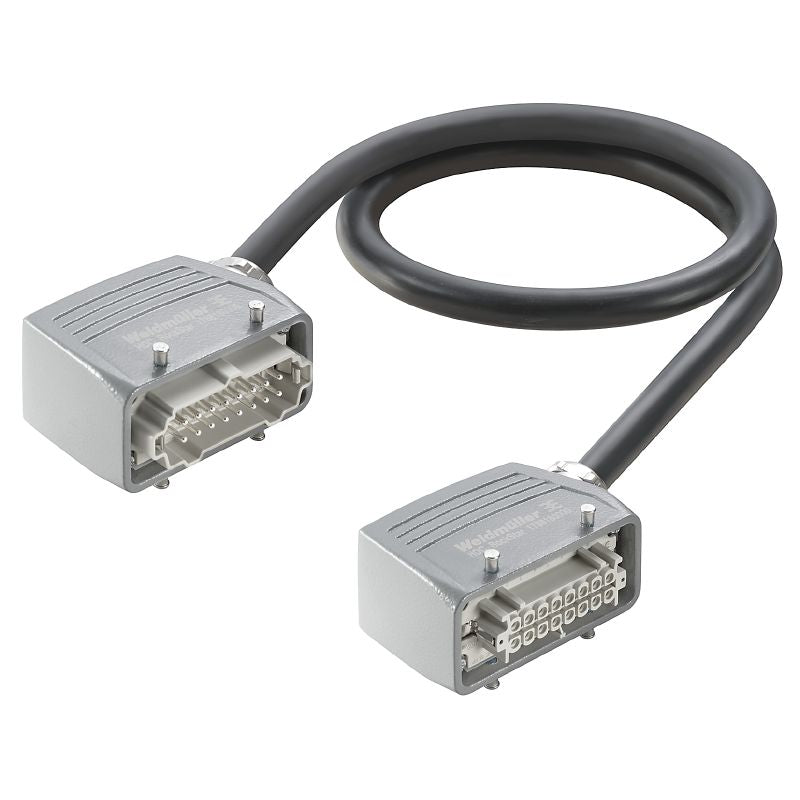

2712340100 - 1m Heavy-Duty 16-Pole Connector Assembly, Pin & Socket
2712340100 - 1m Heavy-Duty 16-Pole Connector Assembly, Pin & Socket
SKU: SKU: 2712340100 Download PDF
- 2712340100 - 1m Heavy-Duty 16-Pole Connector Assembly, Pin & Socket
- 2712340100 - 1m Heavy-Duty 16-Pole Connector Assembly, Pin & Socket
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a robust connector assembly designed for durability, this product includes pin and socket connectors and is based on the specifications of Lapp ÖLFLEX CLASSIC 110 BK 18G15 This assembly features 16 poles and does not include shielding It adheres to RoHS standards and is recognized with multiple product classifications, ensuring compliance and reliability for your connectivity needs.
Features and Benefits:
•RoHS compliant with exemptions.
•Housing made of diecast aluminum.
•Pin arrangement is 1:1 with numbered cores.
•Rated for nominal voltage of 500V.
•Protection degree of IP65.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 1 m |
| Core cross-section | 1.5 mm² |
| Insulation | PVC |
| Number of wires | 18 |
| Outside diameter | 14.4 mm |
| Sheath material | PVC |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 |
