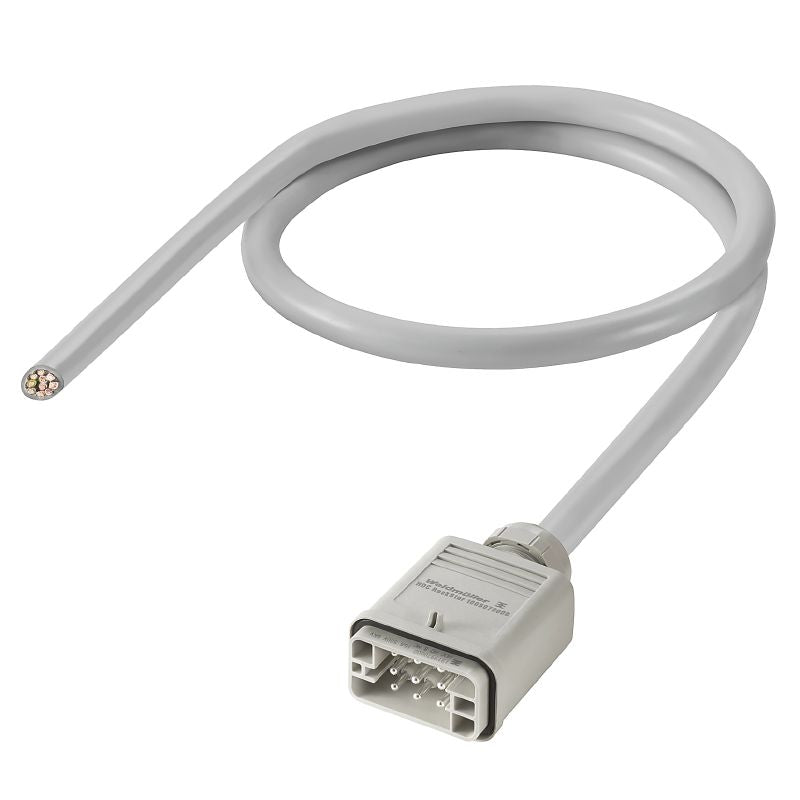

2712510100 - 8-Pin Heavy Duty Connector Assembly, 2m, IP65 Rated
2712510100 - 8-Pin Heavy Duty Connector Assembly, 2m, IP65 Rated
SKU: SKU: 2712510100 Download PDF
- 2712510100 - 8-Pin Heavy Duty Connector Assembly, 2m, IP65 Rated
- 2712510100 - 8-Pin Heavy Duty Connector Assembly, 2m, IP65 Rated
Couldn't load pickup availability
Description:
Discover the reliability of our heavy-duty connector assemblies, equipped with 8 pins and tailored for compatibility with cables like Helukabel JZ-500 10G25 or similar models These unshielded connectors boast a nominal voltage rating of 500 V and are constructed with durable plastic Designed for versatility, they perform well in a variety of environmental conditions and meet RoHS compliance standards.
The assembly features a straight cable entry, works effectively between temperatures of -40 °C to 80 °C, and is rated IP65 for excellent protection against dust and water Weighing in at 447397 g, these connectors are a dependable choice for robust applications.
Features and Benefits:
•Protection degree IP65.
•Compliant with RoHS requirements.
•Temperature range from -40 °C to 80 °C.
•Bending radius of minimum 7.5 times cable diameter when moving.
•Halogen free.
•Connector housing made of plastic.
Specifications:
| Number of poles | 8 |
| Pin arrangement | 1:1, numbered cores |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 2 m |
| Core cross-section | 2.5 mm² |
| Is it shielded | No |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
| Sheath material | PVC |
| Insulation | PVC |
| Number of wires | 10 |
| Outside diameter | 14.8 mm |
