Description:

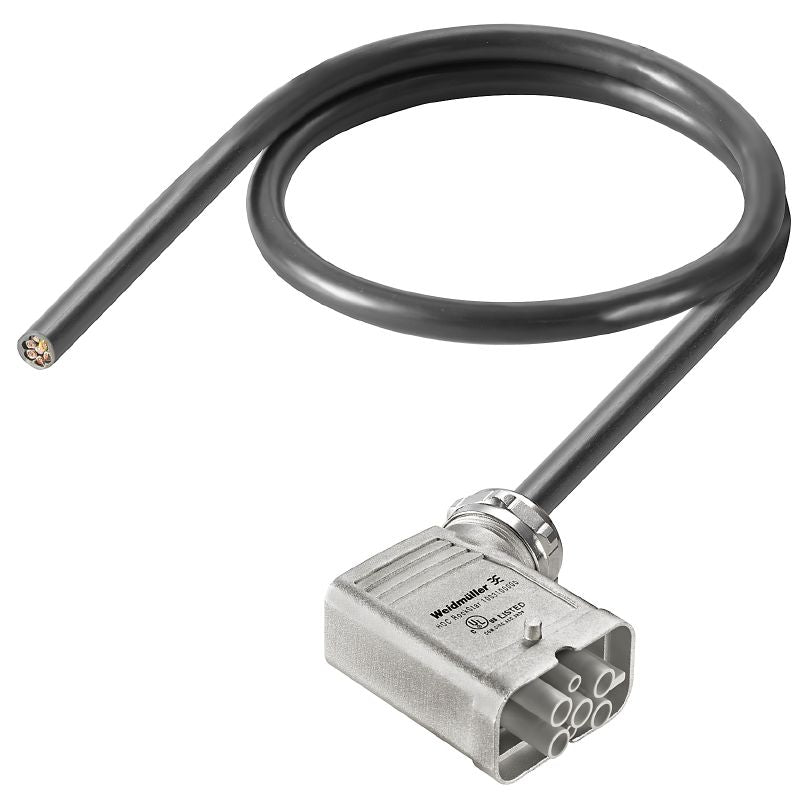

Introducing this robust connector assembly, tailored for heavy-duty applications It boasts a socket connector that adheres to various regulatory standards, including RoHS compliance Constructed with a black Helukabel JZ-500-C cable— or comparable type— this connector features six poles and offers IP65 rating for reliable protection against dust and water ingress Its angled cable entry is crafted from durable zinc diecast housing, securing a range of individual components for enhanced functionality.
Perfect for those in need of a reliable and efficient connection solution.
Features and Benefits:
•RoHS compliant.
•Shielded design.
•Female type connector.
•IP65 protection degree.
•Bending radius suitable for both moving and stationary applications.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Pin arrangement | 1:1, numbered cores |
| Limit temperature | -40 °C ... 80 °C |
| Cable length | 2 m |
| Core cross-section | 2.5 mm² |
| Outside diameter | 12.1 mm |
| Sheath material | PVC |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -10 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
