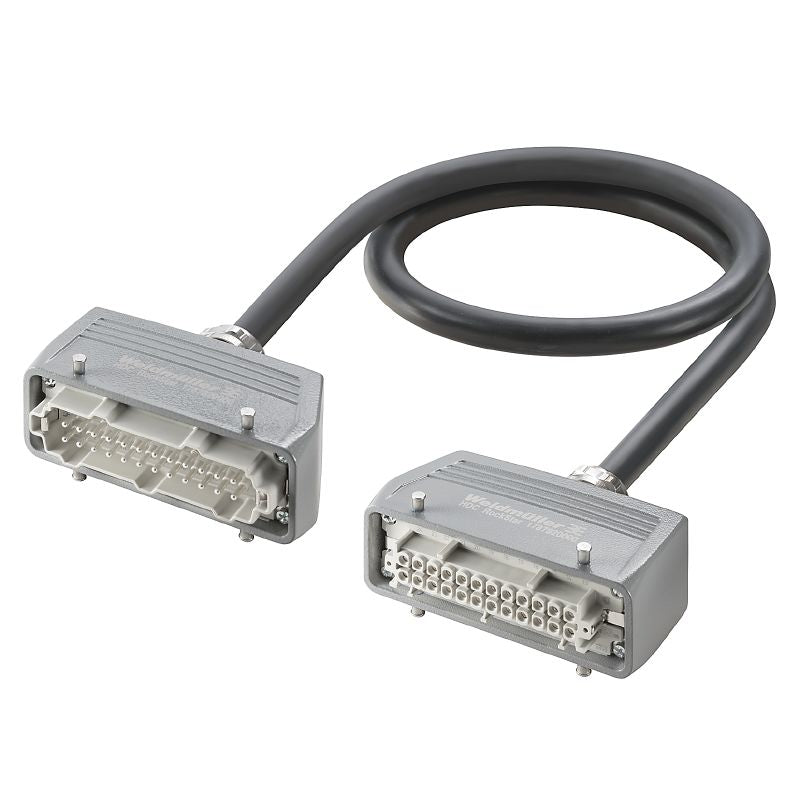

2712350100 - 1m Heavy-Duty 24 Pole Connector Assembly, Aluminum, 500V
2712350100 - 1m Heavy-Duty 24 Pole Connector Assembly, Aluminum, 500V
SKU: SKU: 2712350100 Download PDF
- 2712350100 - 1m Heavy-Duty 24 Pole Connector Assembly, Aluminum, 500V
- 2712350100 - 1m Heavy-Duty 24 Pole Connector Assembly, Aluminum, 500V
Couldn't load pickup availability
Description:
Introducing our robust connector assembly, equipped with pin and socket connectors that comply with Lapp ÖLFLEX CLASSIC 110 BK 12G15 specifications or similar These unshielded connectors feature 24 poles and are engineered to manage a nominal voltage of 500 V The design incorporates a straight cable entry and is crafted from diecast aluminum, ensuring durability and reliability Additionally, this assembly meets all RoHS compliance standards and adheres to environmental product regulations, making it a dependable choice for various applications.
Features and Benefits:
•Includes 24 poles with a 1:1 pin arrangement and numbered cores.
•Protection degree rated at IP65.
•Halogen-free design.
•Temperature limits ranging from -40 °C to 80 °C.
•Complies with RoHS exemption (6c).
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Nominal voltage | 500 V |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 1 m |
| Core cross-section | 1.5 mm² |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 12G1.5 or similar |
| Number of wires | 25 |
| Outside diameter | 16.9 mm |
| Sheath material | PVC |
| Shielded | No |
| Temperature range, moving, max | 70 °C |
| Temperature range, moving, min | -15 °C |
| Temperature range, stationary, max | 80 °C |
| Temperature range, stationary, min | -40 |
