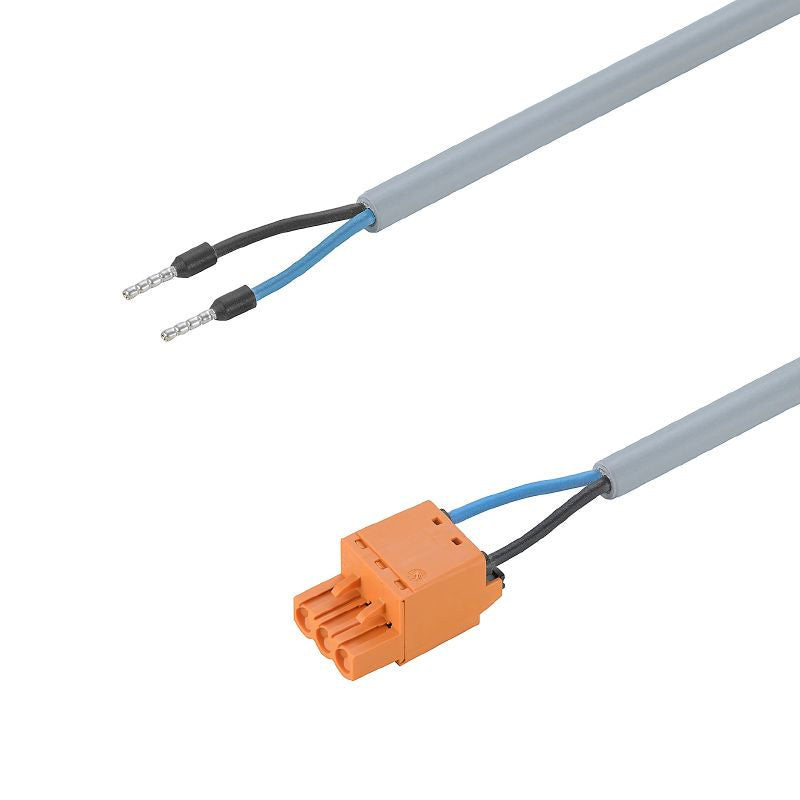

2784110033 - Durable 0.33m Smart Metering Cable, IP20, 18.5A Capacity (Pack of 10)
2784110033 - Durable 0.33m Smart Metering Cable, IP20, 18.5A Capacity (Pack of 10)
SKU: SKU: 2784110033 Download PDF
- 2784110033 - Durable 0.33m Smart Metering Cable, IP20, 18.5A Capacity (Pack of 10)
- 2784110033 - Durable 0.33m Smart Metering Cable, IP20, 18.5A Capacity (Pack of 10)
Couldn't load pickup availability
Description:
Introducing the Smart Metering Cable Assembly, engineered to support a nominal voltage of 600 V and a maximum current capacity of 185 A This assembly is equipped with a socket connector that boasts an IP20 protection rating, ensuring durability in various environments With a rated impulse withstand voltage of 6 kV, it offers robust performance Crafted from a blend of PUR and TPE materials, this cable measures 0.
33 m in length and features an environmentally friendly grey outer sheath that is halogen-free Its two-pole design makes it versatile for a range of applications.
Features and Benefits:
•Compliant with RoHS standards.
•No SVHC above 0.1 wt%.
•Suitable for moving and stationary applications.
•Cable insulation made of PP.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 600 V |
| Number of poles | 2 |
| Protection degree | IP20 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 0.33 m |
| Cable Material | PUR/ TPE |
| Core cross-section | 1.5 mm² |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Bending radius, min., moving | 15 x cable diameter |
| Bending radius, min., stationary | 10 x cable diameter |
| Temperature range, moving, max | 90 °C |
| Temperature range, moving, min | -25 °C |
| Temperature range, stationary, max | 90 °C |
| Temperature range, stationary, min | -40 °C |
