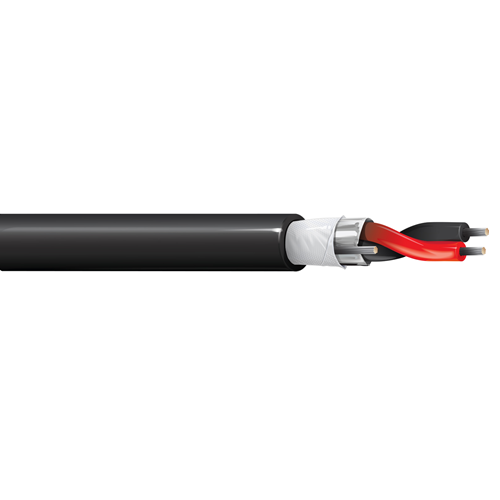

Belden 5340U1 18 AWG 2 Conductor 7x26 Stranding Tinned Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Rated-CMG-FPL-PLTC, 1-18 AWG stranded tinned copper pair with PVC insulation, Waterblocking tape, PVC jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.080 in (2.0 mm)
• Waterblocking: Waterblock Tape

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.266 in (6.76 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +90°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Below-Grade Duct

Specifications:

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 7x26
• Conductor Material: TC - Tinned Copper
• Part Number: 5340U1
