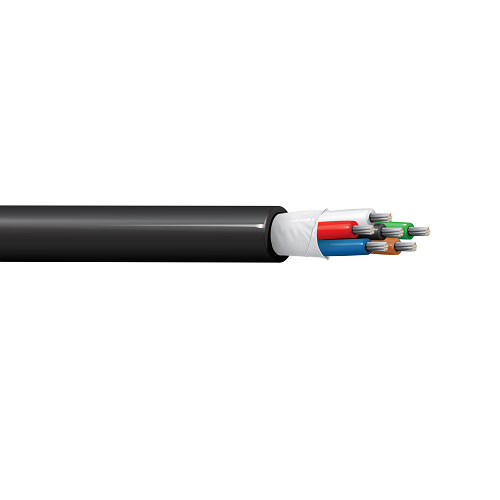

Belden 5304U1 18 AWG 6 Conductor 7x26 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Rated-CMG-FPL-PLTC, 6-18 AWG stranded tinned copper conductors with PVC insulation, Waterblocking tape, PVC jacket

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.04 in (1.0 mm)
• Waterblock Tape

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.042 in (1.1 mm)
• Nom. Diameter: 0.316 in (8.03 mm)
• Separator: Waterblocking Tape

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +90°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Below-Grade Duct

Specifications:-

• Size (AWG): 18
• No. of Conductor: 6
• Stranding: 7x26
• Conductor Material: TC - Tinned Copper
• Part Number: 5304U1
