Description:

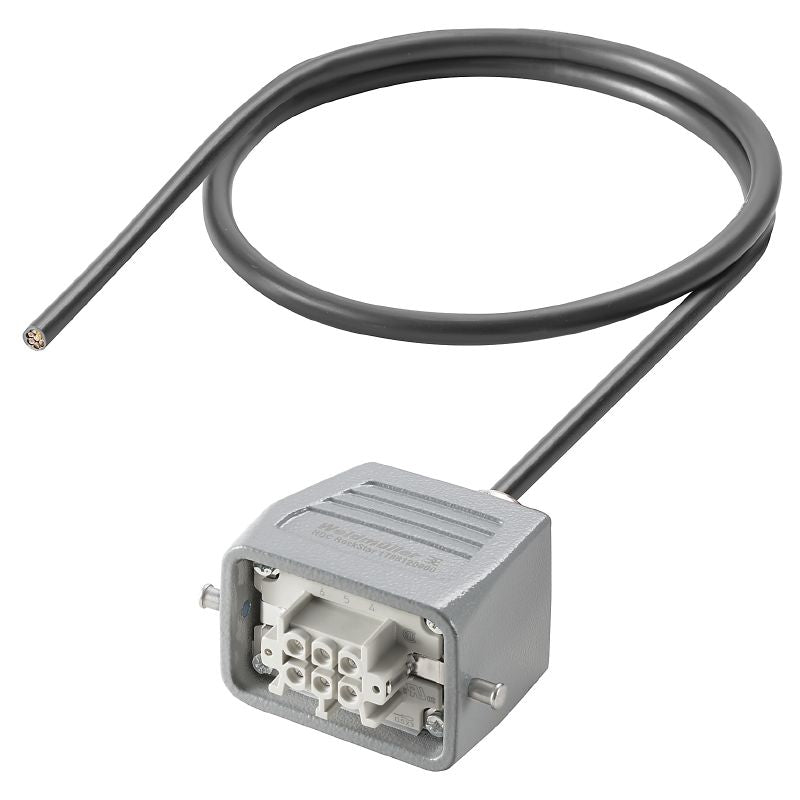

This robust connector assembly is engineered to accommodate a socket connector compatible with Lapp ÖLFLEX CLASSIC 110 BK 7G15 or similar models With six poles and no shielding, it promises dependable performance within a temperature range of -40 °C to 80 °C Weighing in at 843527 g, this assembly also meets RoHS compliance standards, ensuring it adheres to environmentally safe practices.
Features and Benefits:
•Socket connector designed for heavy-duty applications.
•Compliant with RoHS regulations.
•Protection degree IP65 for dust and water resistance.
•Low bending radius requirements for both moving and stationary applications.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Pin arrangement | 1:1, numbered cores |
| Cable entry | straight |
| Housing main material | Diecast aluminium |
| Series | HE |
| Size | 3 |
| Type | Female |
| Cable length | 2 m |
| Core cross-section | 1.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 7G1.5 or similar |
| Number of wires | 7 |
| Outside diameter | 8.9 mm |
| Sheath material | PVC |
| Sheathing colour | black |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
