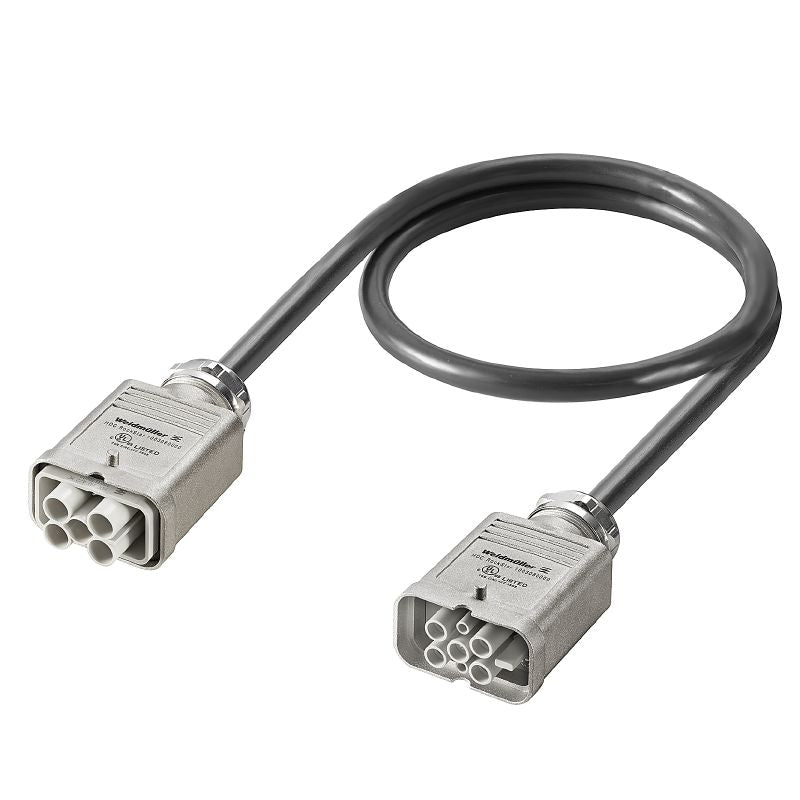

2712370500 - 5m Shielded Connector Assembly, 6 Poles, ROHS Compliant
2712370500 - 5m Shielded Connector Assembly, 6 Poles, ROHS Compliant
SKU: SKU: 2712370500 Download PDF
- 2712370500 - 5m Shielded Connector Assembly, 6 Poles, ROHS Compliant
- 2712370500 - 5m Shielded Connector Assembly, 6 Poles, ROHS Compliant
Couldn't load pickup availability
Description:
Introducing our robust heavy-duty connector assemblies, designed with pin and socket connectors that adhere to Helukabel JZ-500-C black 7G25 standards or similar These shielded connectors boast six poles for reliable performance and come with the assurance of ROHS-compliant materials, making them a trustworthy choice for your electrical needs.
Features and Benefits:
•Nominal voltage of 500 V.
•IP65 protection degree.
•Die-cast zinc housing material.
•PVC insulation and sheathing material.
•Halogen-free construction.
•Designed for significant temperature ranges from -40 °C to 80 °C.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 5 m |
| Core cross-section | 2.5 mm² |
| Number of wires | 7 |
| Outside diameter | 12.1 mm |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -10 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
