Description:

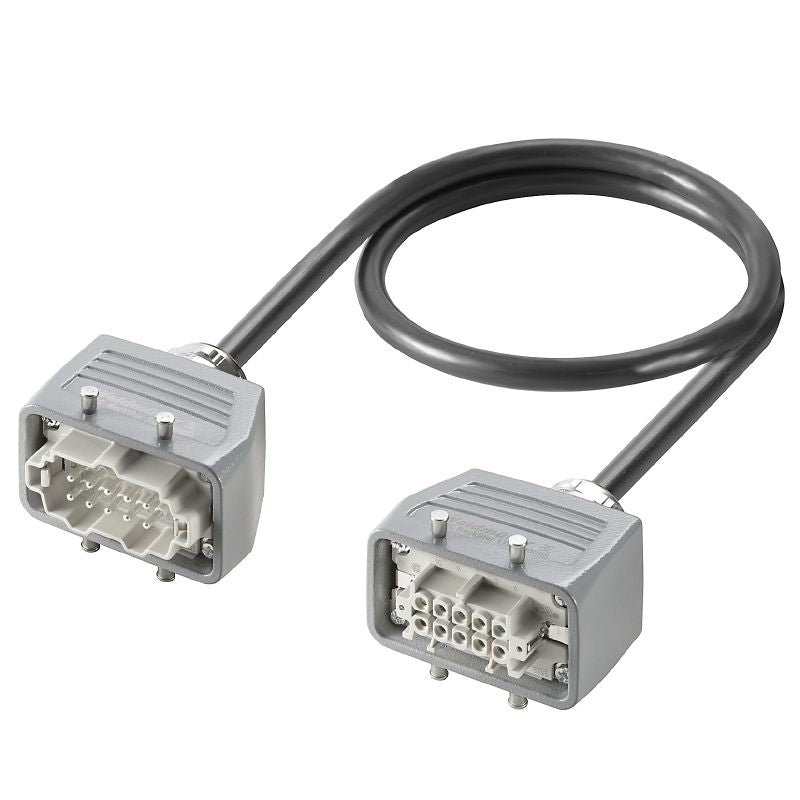

This robust connector assembly consists of pin and socket connectors crafted from Lapp ÖLFLEX CLASSIC 110 BK 12G15 or an equivalent material Featuring 10 poles, the connectors are designed without shielding and meet RoHS standards With a diameter of 12 mm and weighing approximately 885376 g, these connectors are engineered to function effectively in temperatures ranging from -40 °C to 80 °C, making them suitable for diverse applications and environments.
Features and Benefits:
•Complies with RoHS and REACH standards.
•Features a protection degree of IP65.
•Made with diecast aluminum housing for durability.
•Includes both a pin and a female type connector with straight cable entry.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 10 |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 1 m |
| Core cross-section | 1.5 mm² |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 12G1.5 or similar |
| Number of wires | 12 |
| Sheath material | PVC |
| Shielded | No |
| Temperature range, moving, max | 70 °C |
| Temperature range, moving, min | -15 °C |
| Temperature range, stationary, max | 80 °C |
| Temperature range, stationary, min | -40 °C |
