Description:

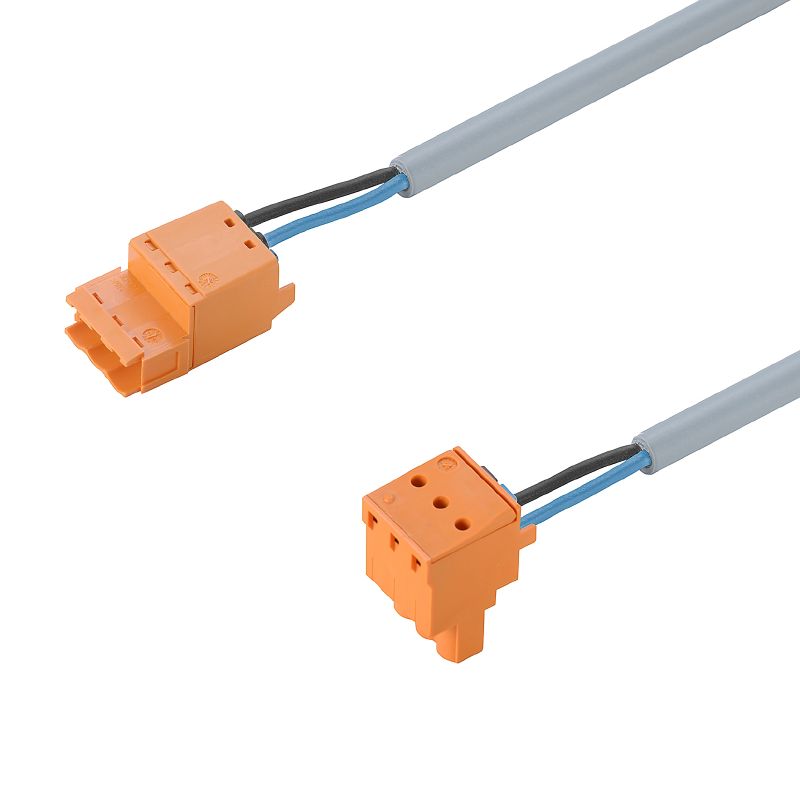

Introducing the Smart Metering Cable Assembly, specifically crafted for 6 kV applications utilizing pin and socket connectors With a nominal voltage of 400 V and a maximum current capacity of 185 A, this assembly is designed to perform effectively across various environments thanks to its IP20 protection rating Measuring 033 meters in length, it is made from premium materials and complies with RoHS standards, ensuring safety and quality in your electrical setups.
Features and Benefits:
•Compliant with RoHS without exemption.
•Lightweight design at only 4.928 g.
•Multiple cable entry options: straight and angled.
•Durable housing made of plastic.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 400 V |
| Number of poles | 2 |
| Protection degree | IP20 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 0.33 m |
| Cable Material | PUR/ TPE |
| Core cross-section | 1.5 mm² |
| Halogen | No |
| Insulation | PP |
| Line type | KB PUR US 2X1.5 GY XX 6KV |
| Number of wires | 2 |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Bending radius, min., moving | 15 x cable diameter |
| Bending radius, min., stationary | 10 x cable diameter |
| Temperature range, moving, max. | 90 °C |
| Temperature range, moving, min. | -25 °C |
| Temperature range, stationary, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
