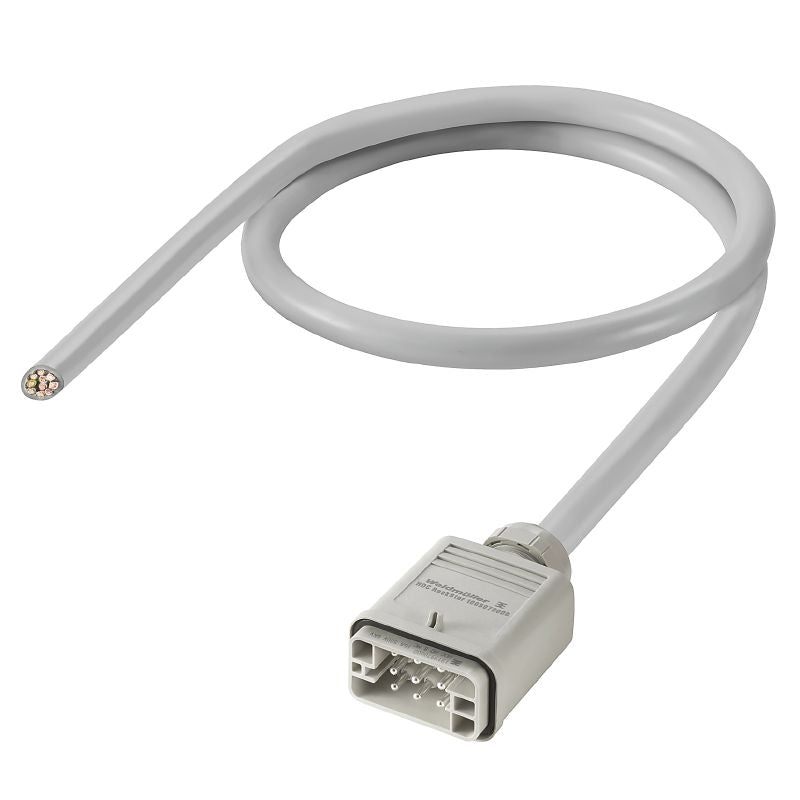

2712510200 - 5m Heavy-Duty Connector, 8 Poles, IP65 Rated
2712510200 - 5m Heavy-Duty Connector, 8 Poles, IP65 Rated
SKU: SKU: 2712510200 Download PDF
- 2712510200 - 5m Heavy-Duty Connector, 8 Poles, IP65 Rated
- 2712510200 - 5m Heavy-Duty Connector, 8 Poles, IP65 Rated
Couldn't load pickup availability
Description:
Discover the reliability of this robust connector assembly, featuring a precise 1:1 pin arrangement with 8 poles that are numbered for easy identification Designed for demanding applications, it operates at a nominal voltage of 500 V and boasts an IP65 rating, making it highly resistant to dust and water The assembly utilizes Helukabel JZ-500 10G25 or a comparable unshielded cable with a core cross-section of 2.
5 mm² Crafted from durable plastic, this product adheres to RoHS compliance standards and includes a straight cable entry for seamless installation.
Features and Benefits:
•IP65 protection degree.
•Robust design for heavy-duty applications.
•Numbered cores for easy identification.
•Compliant with RoHS and REACH regulations.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 5 m |
| Halogen | Yes |
| Insulation | PVC |
| Number of wires | 10 |
| Outside diameter | 14.8 mm |
| Sheath material | PVC |
| Sheathed colour | grey |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 |
