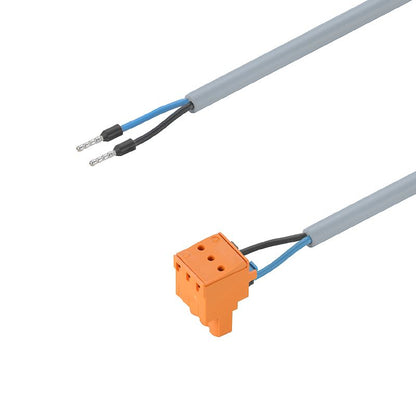

2817650033 - 0.33m IP20 Smart Metering Cable for High Voltage, 18.5A (Pack of 10)
2817650033 - 0.33m IP20 Smart Metering Cable for High Voltage, 18.5A (Pack of 10)
SKU: SKU: 2817650033 Download PDF
- 2817650033 - 0.33m IP20 Smart Metering Cable for High Voltage, 18.5A (Pack of 10)
- 2817650033 - 0.33m IP20 Smart Metering Cable for High Voltage, 18.5A (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the Smart Metering Cable Assemblies, ideal for high voltage applications These assemblies feature a socket connector with an IP20 rating, ensuring reliable performance up to 600 V Each cable measures 033 meters in length and is constructed from strong materials for enhanced durability Compliant with RoHS standards, these assemblies contain no Substances of Very High Concern (SVHC) above 0.
1 wt%, making them a safe choice for your needs.
Features and Benefits:
•Compliant with RoHS standards.
•Suitable for smart metering applications.
•Socket connector rated for 6 kV.
•Lightweight at 5.6 g.
•Used in smart metering systems.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 600 V |
| Number of poles | 2 |
| Protection degree | IP20 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 0.33 m |
| Cable Material | PUR/ TPE |
| Core cross-section | 1.5 mm² |
| Insulation | PP |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Temperature range, moving, max. | 90 °C |
| Temperature range, moving, min. | -25 °C |
| Temperature range, stationary, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
