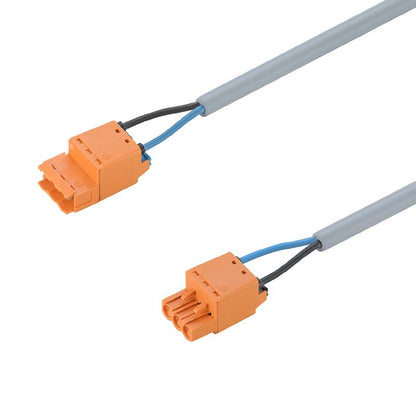

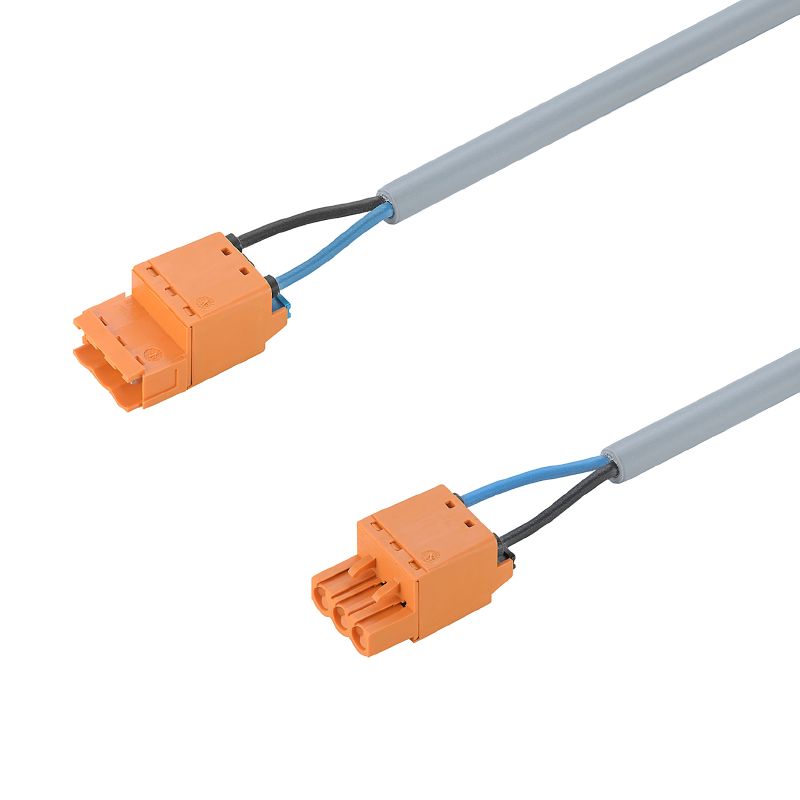

2853620033 - 0.33m Smart Metering Cable, 6kV, 18.5A, 2 Poles (Pack of 10)

Description:

Introducing the Smart Metering Cable Assemblies, engineered for optimal performance with a maximum current capacity of 185 A and capable of handling nominal voltages up to 600 V Each cable measures 033 m in length and features a robust two-pole design Built to meet an IP20 protection rating, these assemblies also offer an impressive impulse withstand voltage of 6 kV Fully compliant with RoHS regulations, they contain no SVHC substances exceeding 0.

1 wt% Designed for easy installation, the connectors, made from durable plastic housing, are available in both male and female options and are crafted for straight cable entry Please remember the bending radius guidelines: for dynamic applications, the radius should be 15 times the diameter, while in fixed setups, it should be 10 times the diameter.

Features and Benefits:

•Compliant with RoHS without exemption.

•Cable housing made of durable plastic.

•Designed for both straight cable entry.

•Bending radius specifications provided for both moving and stationary applications.

•Halogen-free construction.
