2712250100 - 6-Pole Heavy Duty Socket Connector, 1m, 500V, Durable Design
2712250100 - 6-Pole Heavy Duty Socket Connector, 1m, 500V, Durable Design
SKU: SKU: 2712250100 Download PDF
- 2712250100 - 6-Pole Heavy Duty Socket Connector, 1m, 500V, Durable Design
- 2712250100 - 6-Pole Heavy Duty Socket Connector, 1m, 500V, Durable Design
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

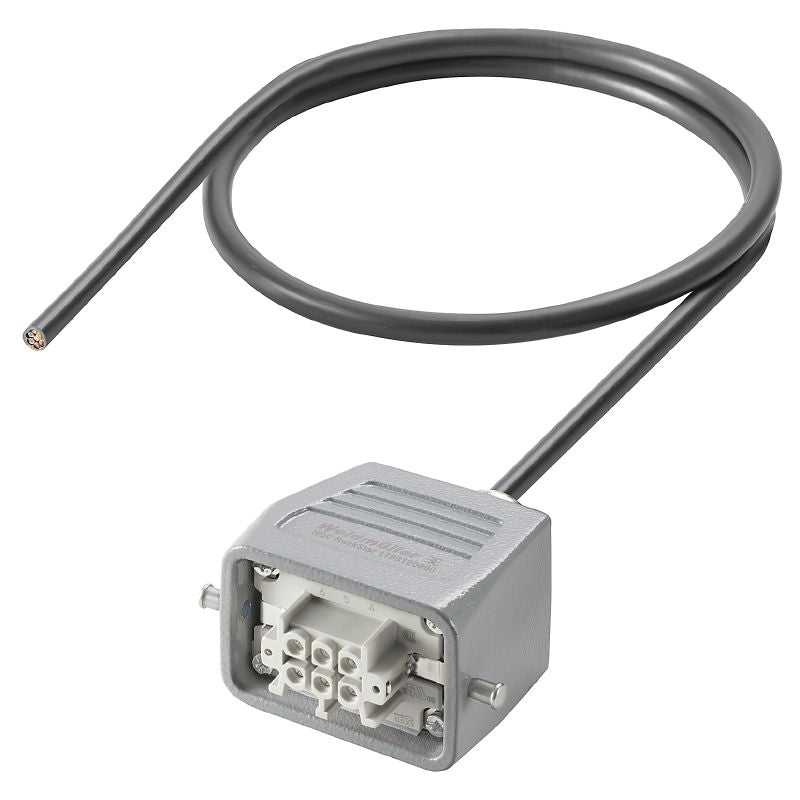

Introducing the CH-HEAB-XXXX-06-0100-AH, a robust connector assembly that boasts a reliable socket connector type Crafted from materials comparable to Lapp ÖLFLEX CLASSIC 110 BK 7G15, this assembly is designed without shielding and features a configuration of 6 poles It operates effectively in a wide temperature range, tolerating conditions as extreme as -40 °C and reaching up to 80 °C Additionally, this product meets RoHS compliance standards, while allowing for specific exemptions regarding certain substances, ensuring both safety and performance.
Features and Benefits:
•Compliant with RoHS exemption 6c.
•Lead and potassium perfluorobutane sulfonate present.
•IP65 protection degree.
•Numbered cores in pin arrangement.
•Made from diecast aluminum housing.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Pin arrangement | 1:1, numbered cores |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 1 m |
| Core cross-section | 1.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 7G1.5 or similar |
| Number of wires | 7 |
| Outside diameter | 8.9 mm |
| Sheath material | PVC |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
