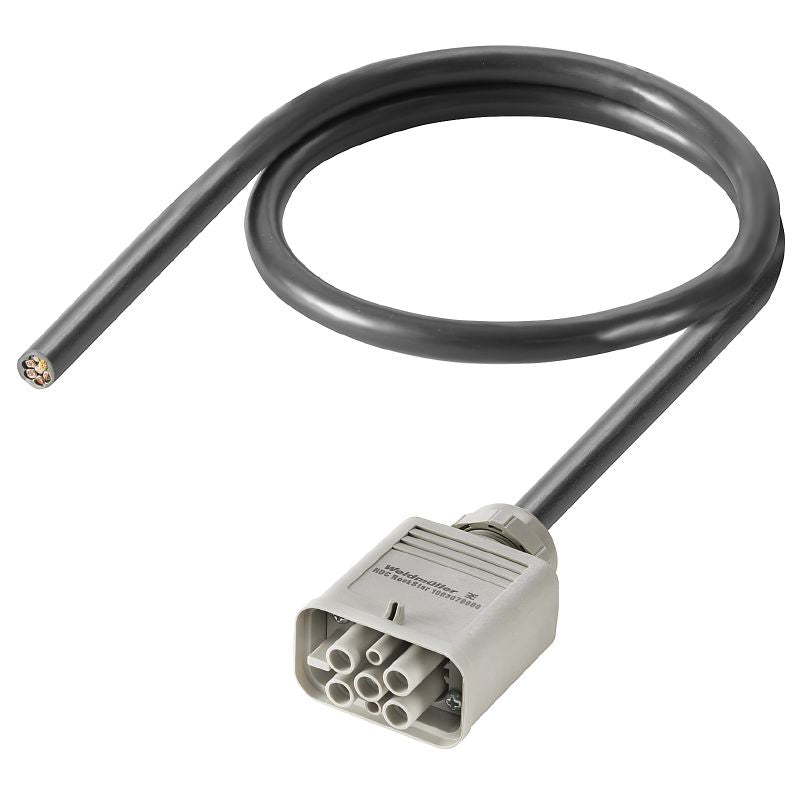

2712410100 - 1m Heavy Duty 6-Pole Connector Assembly, RoHS Compliant
2712410100 - 1m Heavy Duty 6-Pole Connector Assembly, RoHS Compliant
SKU: SKU: 2712410100 Download PDF
- 2712410100 - 1m Heavy Duty 6-Pole Connector Assembly, RoHS Compliant
- 2712410100 - 1m Heavy Duty 6-Pole Connector Assembly, RoHS Compliant
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a robust connector assembly designed for heavy-duty use, this socket connector is ideal for applications like the Lapp ÖLFLEX CLASSIC 110 BK 7G25 It features 6 poles and is non-shielded, ensuring reliable connectivity without interference Meeting RoHS compliance standards, this connector is engineered for safety and environmental responsibility Weighing in at 449118 grams, it’s built to withstand extreme temperatures, with limits ranging from -40 °C to 80 °C, making it perfect for demanding environments.
Features and Benefits:
•Connector type: Female.
•Protection degree: IP65.
•Pin arrangement: 1:1, numbered cores.
•Cable entry: straight.
•Housing main material: Plastic.
•Sheath material: PVC.
•Sheathing colour: black.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 1 m |
| Core cross-section | 2.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 7G2.5 or similar |
| Number of wires | 7 |
| Outside diameter | 11.1 mm |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 |
