2775840033 - 0.33m Smart Metering Cable, 6kV, IP20 Rated (Pack of 10)
2775840033 - 0.33m Smart Metering Cable, 6kV, IP20 Rated (Pack of 10)
SKU: SKU: 2775840033 Download PDF
- 2775840033 - 0.33m Smart Metering Cable, 6kV, IP20 Rated (Pack of 10)
- 2775840033 - 0.33m Smart Metering Cable, 6kV, IP20 Rated (Pack of 10)
Couldn't load pickup availability
Description:

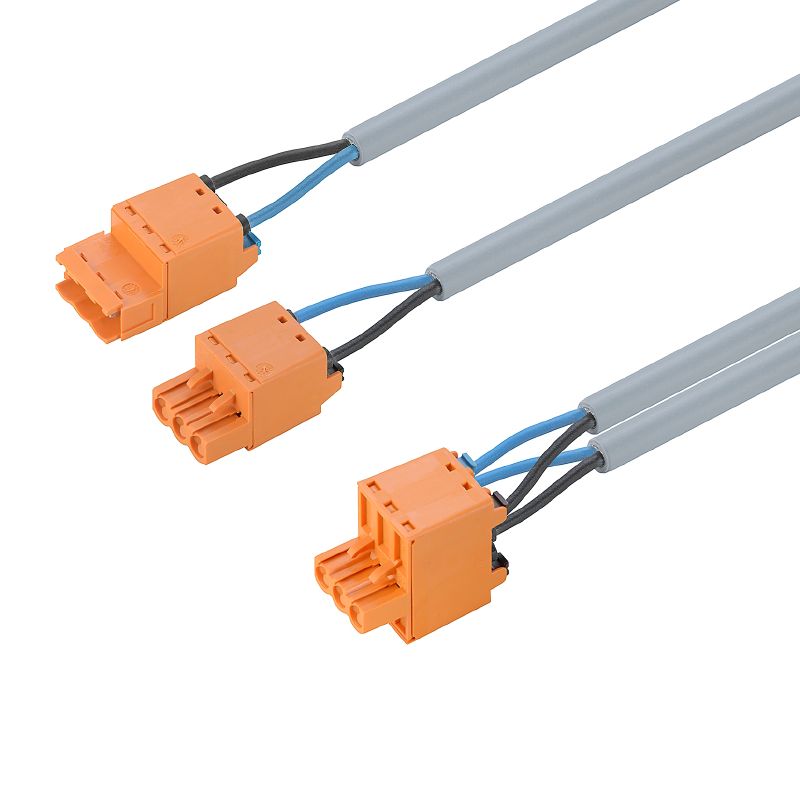

Introducing the Smart Metering Cable Assembly, tailored specifically for smart metering use This assembly is equipped with a pin and socket connector and is fully rated for 6 kV at 600 V Measuring a practical 033 meters in length, it boasts an IP20 protection degree, making it suitable for various applications Furthermore, this assembly adheres to RoHS standards and is guaranteed to be free from any Substances of Very High Concern (SVHC) over 0.
1 wt% Weighing only 56 grams, this lightweight cable assembly is an efficient choice for your smart metering needs.
Features and Benefits:
•RoHS Compliant without exemption.
•Rated for nominal current of 18.5 A.
•Rated for nominal voltage of 600 V.
•Conforms to environmental product compliance standards.
•Rated impulse withstand voltage of 6 kV.
Specifications:
| Cable length | 0.33 m |
| Bending radius, min., moving | 15 x cable diameter |
| Bending radius, min., stationary | 10 x cable diameter |
| Cable Material | PUR/ TPE |
| Core cross-section | 1.5 mm² |
| Halogen | No |
| Insulation | PP |
| Line type | KB PUR US 2X1.5 GY XX 6KV |
| Number of wires | 2 |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Shielded | No |
| Temperature range, moving, max. | 90 °C |
| Temperature range, moving, min. | -25 °C |
| Temperature range, stationary, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
| Protection degree | IP20 |
