2712360100 - 1m Heavy Duty Connector Assembly, 500V, 24-Pole
2712360100 - 1m Heavy Duty Connector Assembly, 500V, 24-Pole
SKU: SKU: 2712360100 Download PDF
- 2712360100 - 1m Heavy Duty Connector Assembly, 500V, 24-Pole
- 2712360100 - 1m Heavy Duty Connector Assembly, 500V, 24-Pole
Couldn't load pickup availability
Description:

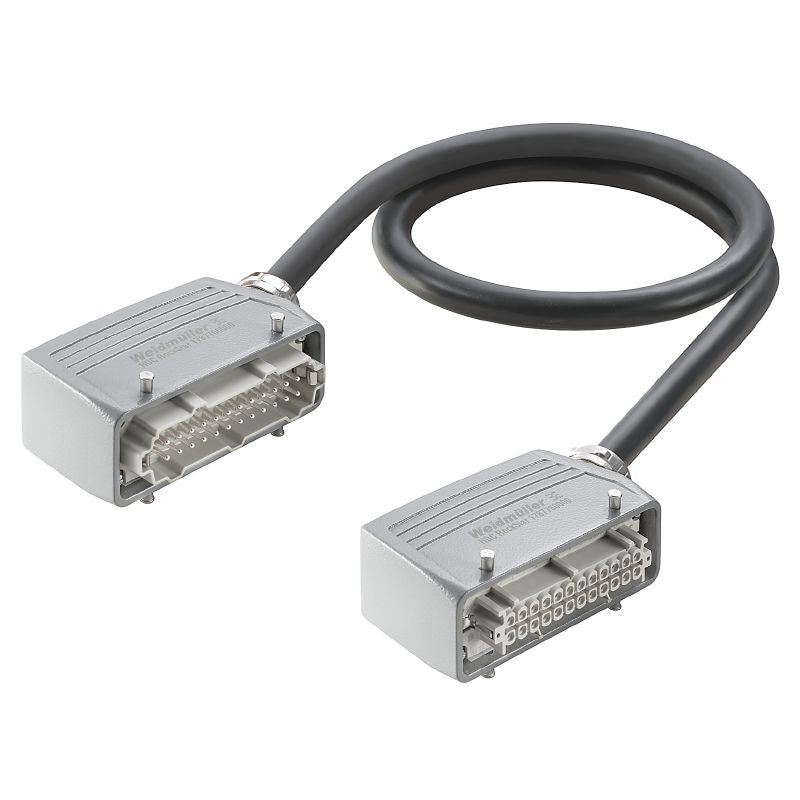

Discover this robust connector assembly designed for durability, featuring pin and socket connectors It utilizes a cable comparable to the Lapp ÖLFLEX CLASSIC 110 BK 25G15, though it does not include shielding This assembly boasts 24 poles and is rated for a nominal voltage of 500 V Compliant with RoHS standards, it can operate within a temperature range of -40 °C to 80 °C, making it a reliable choice for various applications.
Features and Benefits:
•Designed for heavy duty applications.
•Environmentally compliant with RoHS and REACH.
•Includes angled cable entry for both connectors.
•Diecast aluminum housing for durability.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 24 |
| Pin arrangement | 1:1, numbered cores |
| Protection degree | IP65 |
| Cable length | 1 m |
| Core cross-section | 1.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 25G1.5 or similar |
| Sheath material | PVC |
| Sheathing colour | black |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
