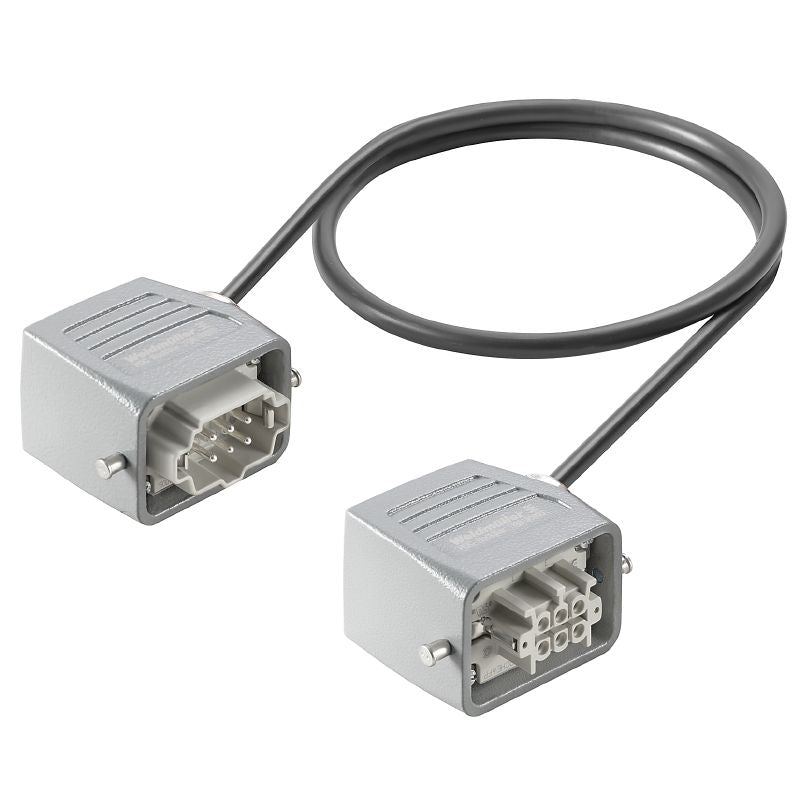

2712240100 - 1m Heavy Duty 6-Pole Connector Assembly, 7 Wires
2712240100 - 1m Heavy Duty 6-Pole Connector Assembly, 7 Wires
SKU: SKU: 2712240100 Download PDF
- 2712240100 - 1m Heavy Duty 6-Pole Connector Assembly, 7 Wires
- 2712240100 - 1m Heavy Duty 6-Pole Connector Assembly, 7 Wires
Couldn't load pickup availability
Description:
Introducing a robust connector assembly, ideal for your electrical needs This heavy-duty design features pin and socket connectors specifically made to work with Lapp ÖLFLEX CLASSIC 110 BK 7G15 or compatible options With a 6-pole configuration and no shielding, it is both functional and straightforward Weighing in at approximately 731483 grams, this connector is built to operate effectively across a temperature range of -40 °C to 80 °C, ensuring reliability in various environments.
Perfect for demanding applications.
Features and Benefits:
•Compliance with RoHS.
•IP65 protection degree.
•1:1 pin arrangement with numbered cores.
•Housing made of diecast aluminum.
•Bending radius of 10 times the cable diameter for moving applications.
•Bending radius of 4 times the cable diameter for stationary use.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Cable length | 1 m |
| Core cross-section | 1.5 mm² |
| Number of wires | 7 |
| Outside diameter | 8.9 mm |
| Insulation | PVC |
| Sheath material | PVC |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
