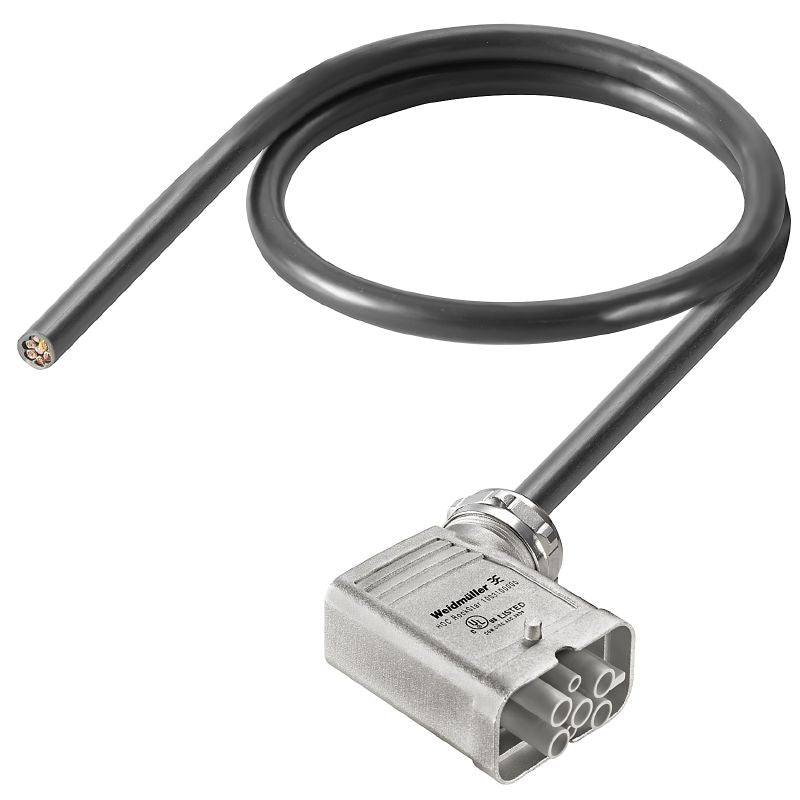

2712400500 - Heavy Duty 6-Pole Socket Connector Assembly, 5m Length
2712400500 - Heavy Duty 6-Pole Socket Connector Assembly, 5m Length
SKU: SKU: 2712400500 Download PDF
- 2712400500 - Heavy Duty 6-Pole Socket Connector Assembly, 5m Length
- 2712400500 - Heavy Duty 6-Pole Socket Connector Assembly, 5m Length
Couldn't load pickup availability
Description:
Introducing a robust socket connector assembly designed for durability and performance This assembly features a 6-pole connector type and includes a shielded Helukabel JZ-500-C black 7G25 cable Weighing in at 1,83047 g, this connector is built to withstand extreme conditions, with a temperature tolerance ranging from -40 °C to 80 °C, making it suitable for a variety of environments Enhance your connectivity solutions with this dependable and versatile connector assembly.
Features and Benefits:
•RoHS compliant with exemption.
•Protection degree IP65.
•Numbered cores in pin arrangement.
•Angled cable entry.
•Zinc diecast housing.
•Female type connector.
•Halogen-free insulation.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 5 m |
| Core cross-section | 2.5 mm² |
| Insulation | PVC |
| Outside diameter | 12.1 mm |
| Sheath material | PVC |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -10 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
