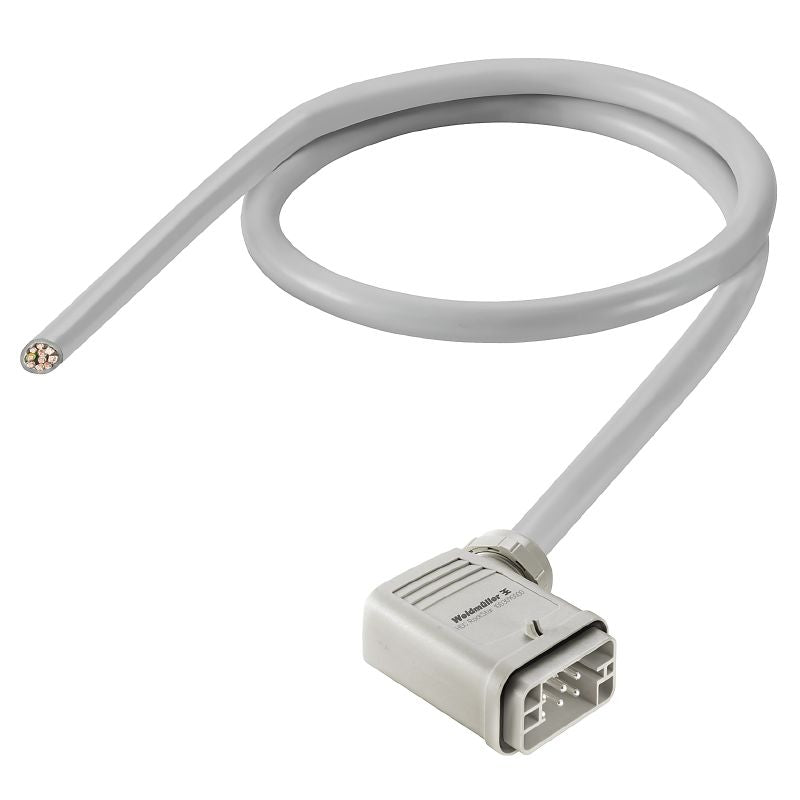

2712490500 - 5m Heavy Duty Male Connector Assembly, 8-Pole, RoHS Compliant
2712490500 - 5m Heavy Duty Male Connector Assembly, 8-Pole, RoHS Compliant
SKU: SKU: 2712490500 Download PDF
- 2712490500 - 5m Heavy Duty Male Connector Assembly, 8-Pole, RoHS Compliant
- 2712490500 - 5m Heavy Duty Male Connector Assembly, 8-Pole, RoHS Compliant
Couldn't load pickup availability
Description:
Introducing a robust connector assembly with a 1:1 pin configuration and clearly numbered cores, ensuring efficient connectivity This model features 8 poles and is engineered to handle a nominal voltage of 500 V, making it suitable for a variety of applications Crafted specifically for male connections, it is made from high-quality plastic to withstand rigorous use Additionally, the component operates effectively within a temperature range of -40 °C to 80 °C, and is compliant with RoHS standards for environmental safety.
Features and Benefits:
•Protection degree of IP65.
•Bending radius of 7.5 times the cable diameter for moving applications.
•Bending radius of 4 times the cable diameter for stationary applications.
•Halogen-free cable insulation.
•PVC sheathing material.
Specifications:
| Number of poles | 8 |
| Limit temperature | -40 °C ... 80 °C |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 5 m |
| Core cross-section | 2.5 mm² |
| Insulation | PVC |
| Sheath material | PVC |
| Outside diameter | 14.8 mm |
| Shielded | No |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
