Description:

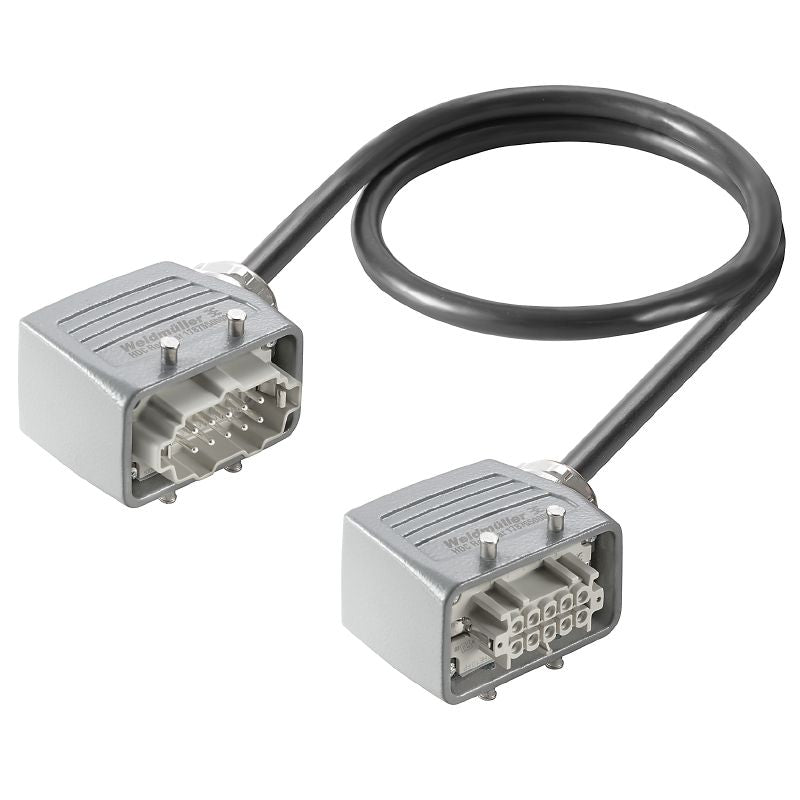

Introducing our robust connector assemblies featuring both pin and socket connectors, crafted in accordance with Lapp ÖLFLEX CLASSIC 110 BK 12G15 or similar standards These connectors come with 10 poles and are designed without shielding Meeting RoHS compliance, they boast a net weight of 2,096376 grams and can operate efficiently within a temperature range of -40 °C to 80 °C, making them suitable for a variety of applications.
Features and Benefits:
•Compliant with RoHS exemption.
•Connector housing made of diecast aluminium.
•IP65 protection degree.
Specifications:
| Nominal voltage | 500 V |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 5 m |
| Core cross-section | 1.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 12G1.5 or similar |
| Number of wires | 12 |
| Sheath material | PVC |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 |
