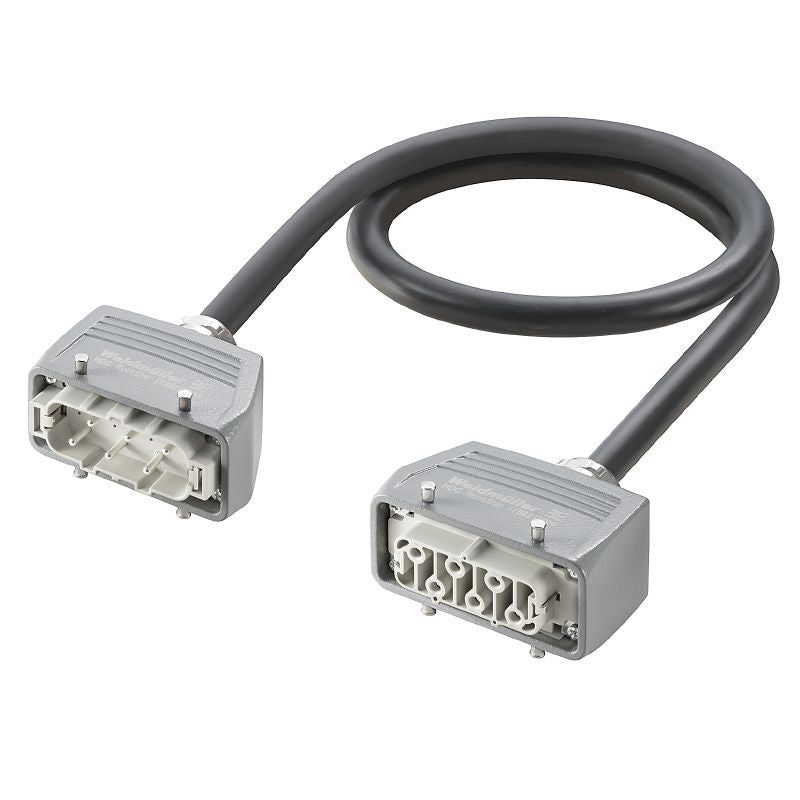

2712310200 - Diecast Aluminum 6-Pole Connector Assembly, 2m Length
2712310200 - Diecast Aluminum 6-Pole Connector Assembly, 2m Length
SKU: SKU: 2712310200 Download PDF
- 2712310200 - Diecast Aluminum 6-Pole Connector Assembly, 2m Length
- 2712310200 - Diecast Aluminum 6-Pole Connector Assembly, 2m Length
Couldn't load pickup availability
Description:
Experience robust connectivity with our heavy-duty connector assemblies, featuring pin and socket connectors tailored for Helukabel JZ-600 7G4 or similar specifications These non-shielded connectors boast 6 poles, making them versatile for various applications Each order includes a single unit, identified by the standard ordering number 2712310200 Crafted from diecast aluminum, these connectors promise long-lasting durability for your projects.
Features and Benefits:
•RoHS compliant with exemptions.
•Connector series: HSB.
•Straight cable entry.
•Halogen-free insulation.
•Robust construction for heavy duty applications.
•IP65 protection degree.
Specifications:
| Nominal voltage | 400 V |
| Number of poles | 6 |
| Pin arrangement | 1:1, numbered cores |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 2 m |
| Core cross-section | 4 mm² |
| Insulation | PVC |
| Line type | Helukabel JZ-600 7G4 or similar |
| Number of wires | 7 |
| Outside diameter | 15.8 mm |
| Sheath material | PVC |
| Sheathing color | black |
| Shielded | No |
| Temperature range, moving, max | 80 °C |
| Temperature range, moving, min | -15 °C |
| Temperature range, stationary, max | 80 °C |
| Temperature range, stationary, min | -40 °C |
