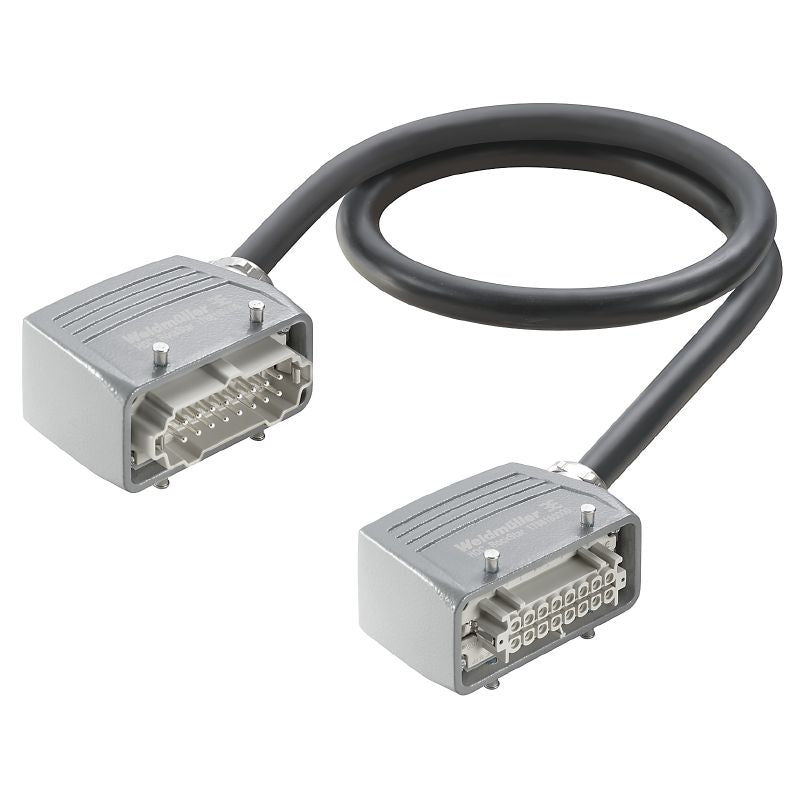

2712340200 - 2m Heavy-Duty 16-Pole Connector Assembly, Shielded, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a robust connector assembly designed for durability, featuring pin and socket connectors that are compatible with models such as the Lapp ÖLFLEX CLASSIC 110 BK 18G15 This heavy-duty assembly includes 16 poles and is equipped with shields for superior performance Meeting RoHS compliance standards with specific exemptions, it weighs 1,389672 grams and can function effectively within a temperature range of -40 °C to 80 °C.

With two connectors featuring angled cable entries, this assembly is crafted from diecast aluminum, making it an excellent choice for demanding applications.

Features and Benefits:

•Nominal voltage of 500 V.

•Protection degree IP65.

•Halogen-free insulation.

•Cable length is 2 m.

•Outside diameter of cable is 14.4 mm.

•Cable made of PVC sheath material.

•Bending radius for moving is min. 10 x cable diameter.

•Bending radius for stationary is min. 4 x cable diameter.

Specifications:
