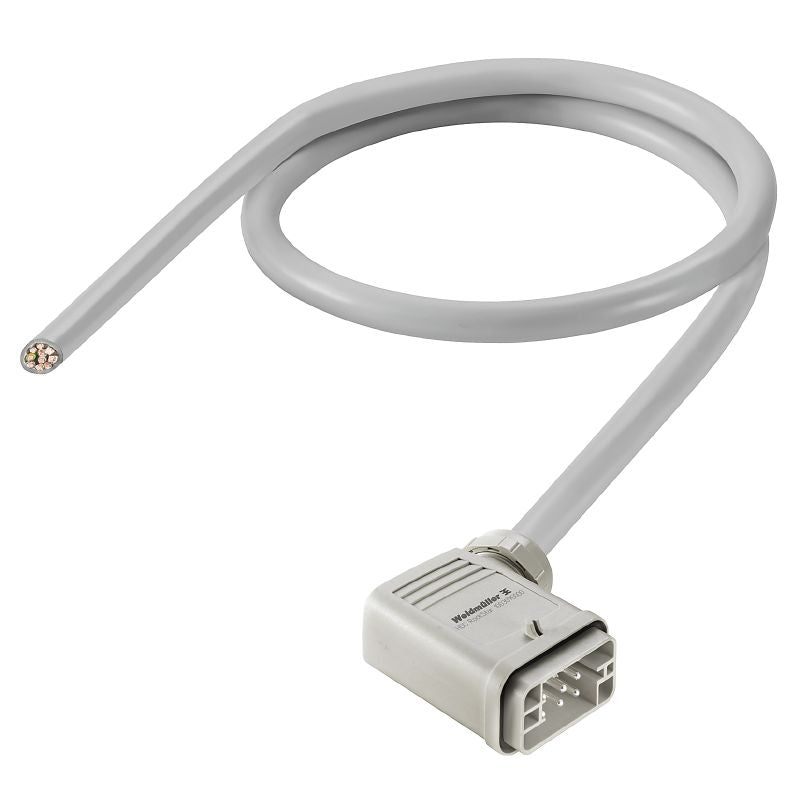

2712490100 - IP65 Heavy Duty 8-Pole Connector Assembly, 1m, 500V
2712490100 - IP65 Heavy Duty 8-Pole Connector Assembly, 1m, 500V
SKU: SKU: 2712490100 Download PDF
- 2712490100 - IP65 Heavy Duty 8-Pole Connector Assembly, 1m, 500V
- 2712490100 - IP65 Heavy Duty 8-Pole Connector Assembly, 1m, 500V
Couldn't load pickup availability
Description:
Introducing our heavy-duty connector assemblies, engineered specifically for rigorous applications that demand reliability This assembly features an eight-pole pin configuration and is designed without shielding It is perfectly compatible with Helukabel JZ-500 10G25 and similar types of connectors Meeting RoHS compliance, it supports a rated nominal voltage of 500V Crafted from durable plastic, the male housing is built to provide IP65 protection, ensuring resistance against dust and water.
Each assembly includes a variety of essential components for versatile connectivity.
Features and Benefits:
•IP65 protection grade.
•Compliant with RoHS.
•Nominal voltage of 500V.
•Pin arrangement is 1:1 with numbered cores.
•Robust and durable construction.
Specifications:
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 1 m |
| Core cross-section | 2.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Helukabel JZ-500 10G2.5 or similar |
| Number of wires | 10 |
| Outside diameter | 14.8 mm |
| Sheath material | PVC |
| Sheathing colour | grey |
| Shielded | No |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
