2712240200 - 1.5mm² Heavy-Duty Connector Assembly with 7 Poles, Angled Entry
2712240200 - 1.5mm² Heavy-Duty Connector Assembly with 7 Poles, Angled Entry
SKU: SKU: 2712240200 Download PDF
- 2712240200 - 1.5mm² Heavy-Duty Connector Assembly with 7 Poles, Angled Entry
- 2712240200 - 1.5mm² Heavy-Duty Connector Assembly with 7 Poles, Angled Entry
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

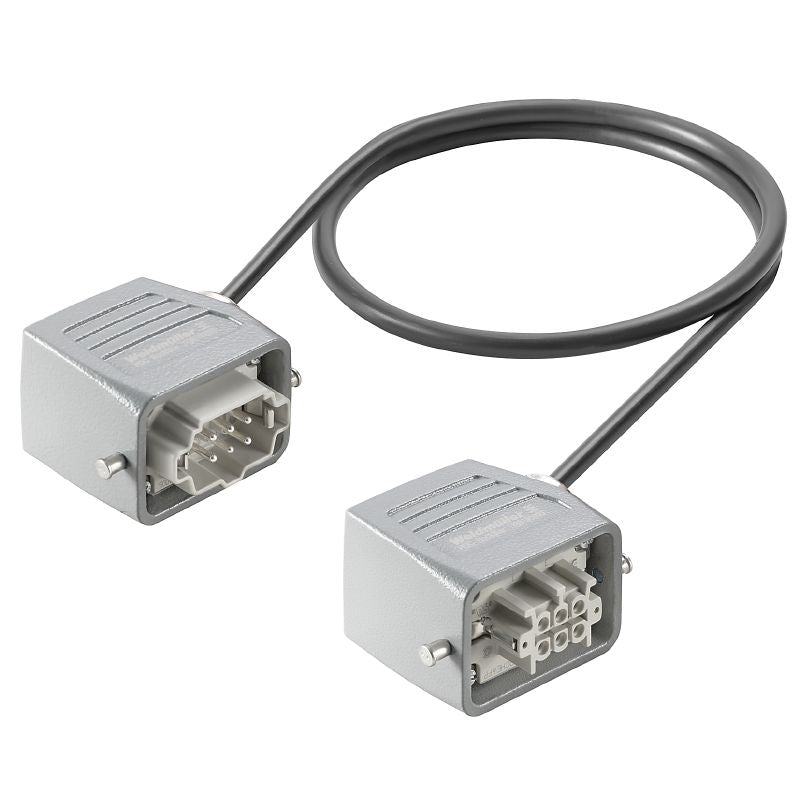

Introducing a robust connector assembly designed for high-performance applications, featuring pin and socket connectors that are compatible with Lapp ÖLFLEX CLASSIC 110 BK 7G15 and similar models This unshielded assembly comprises six poles and adheres to various approvals, highlighting its compliance with industry standards Crafted from durable diecast aluminum, it boasts an angled cable entry, making it suitable for diverse technical environments.
Features and Benefits:
•Nominal voltage of 500 V.
•Protection degree of IP65.
•Halogen-free insulation material.
•Available with a minimum bending radius that accommodates both moving and stationary installations.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 2 m |
| Core cross-section | 1.5 mm² |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 7G1.5 or similar |
| Number of wires | 7 |
| Outside diameter | 8.9 mm |
| Sheath material | PVC |
| Temperature range, moving, max | 70 °C |
| Temperature range, moving, min | -15 °C |
| Temperature range, stationary, max | 80 °C |
| Temperature range, stationary, min | -40 °C |
