Description:

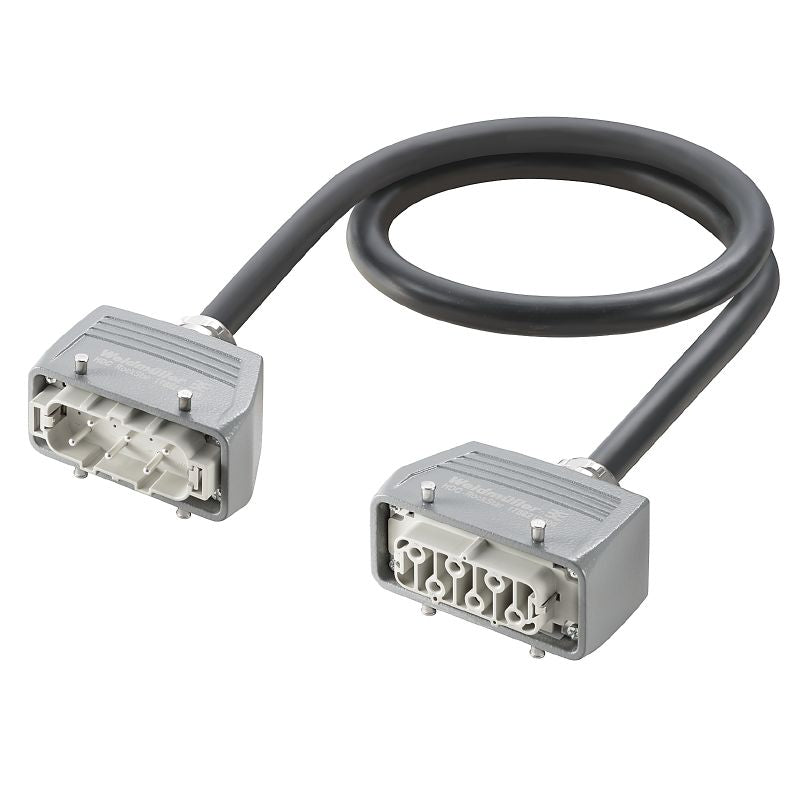

Enhance your connectivity solutions with our robust connector assemblies, equipped with both pin and socket configurations These connectors are of the Helukabel JZ-600 7G4 type or an equivalent, featuring a shielded design engineered for six poles Fully compliant with ROHS standards, this assembly boasts a net weight of 2,31564 g, making it a reliable choice for various applications.
Features and Benefits:
•Compliant with ROHS exemption 6c.
•IP65 protection degree.
•Diecast aluminium housing for durability.
•Temperature limits ranging from -40 °C to 80 °C.
•No shielding for flexibility in installations.
Specifications:
| Nominal voltage | 400 V |
| Number of poles | 6 |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 5 m |
| Core cross-section | 4 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Helukabel JZ-600 7G4 or similar |
| Number of wires | 7 |
| Outside diameter | 15.8 mm |
| Sheath material | PVC |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
