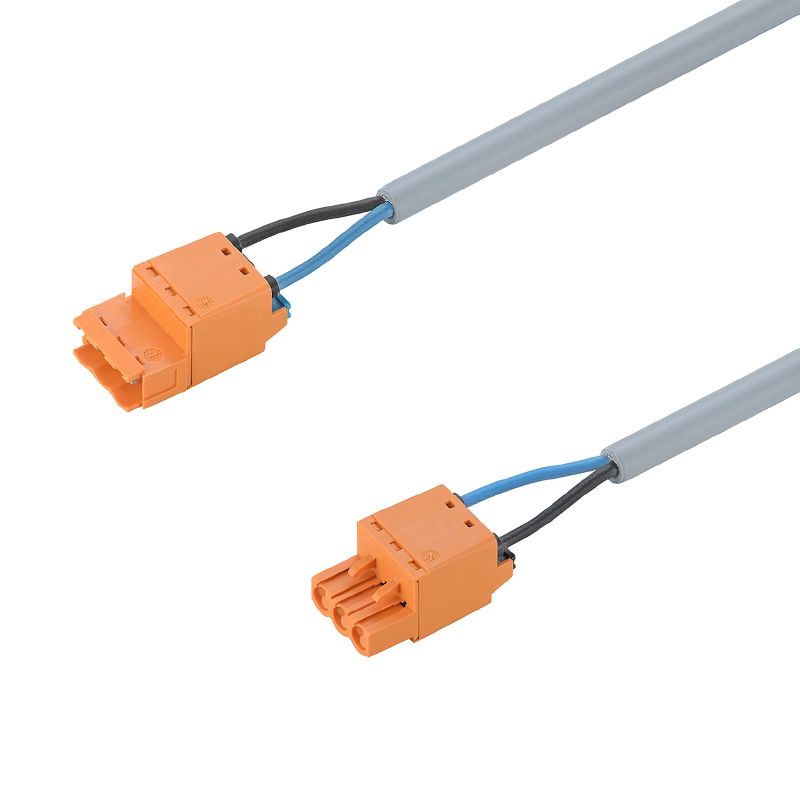

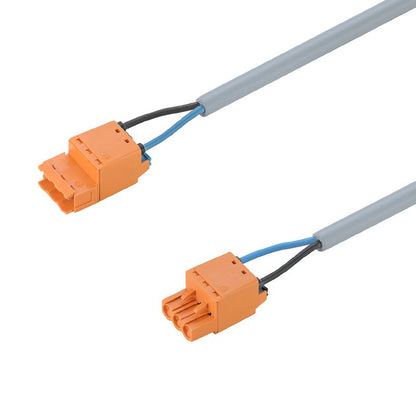

2775880033 - 0.33m Smart Metering Cable with IP20 and 18.5A Rating (Pack of 10)
2775880033 - 0.33m Smart Metering Cable with IP20 and 18.5A Rating (Pack of 10)
SKU: SKU: 2775880033 Download PDF
- 2775880033 - 0.33m Smart Metering Cable with IP20 and 18.5A Rating (Pack of 10)
- 2775880033 - 0.33m Smart Metering Cable with IP20 and 18.5A Rating (Pack of 10)
Couldn't load pickup availability
Description:
Upgrade your measurement solutions with these Smart Metering Cable Assemblies, expertly engineered to handle up to 6 kV Each assembly comes equipped with a practical pin and socket connector and boasts an IP20 rating for protection Crafted from premium materials, these cables comply fully with RoHS standards without any exemptions Capable of supporting a nominal current of 185 A and a voltage of 600 V, the cables measure a convenient length of 0.
33 meters and feature an attractive grey outer sheath Perfect for reliable performance in your metering applications.
Features and Benefits:
•Compliant with RoHS standards.
•Rated for a maximum of 6 kV impulse withstand voltage.
•IP20 protection degree.
•Constructed from PUR/TPE materials.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 600 V |
| Number of poles | 2 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 0.33 m |
| Core cross-section | 1.5 mm² |
| Bending radius, min., moving | 15 x cable diameter |
| Bending radius, min., stationary | 10 x cable diameter |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Temperature range, moving, max. | 90 °C |
| Temperature range, moving, min. | -25 °C |
| Temperature range, stationary, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
| Insulation | PP |
| Halogen | No |
| Shielded | No |
