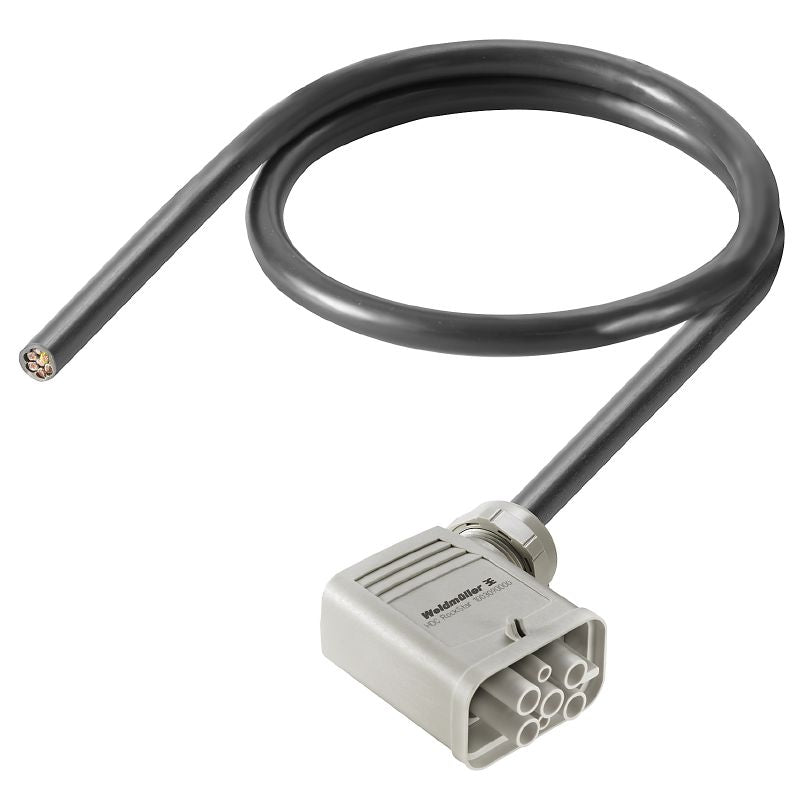

2712420200 - IP65 Rated 2m Robust Connector Assembly with Six Poles
2712420200 - IP65 Rated 2m Robust Connector Assembly with Six Poles
SKU: SKU: 2712420200 Download PDF
- 2712420200 - IP65 Rated 2m Robust Connector Assembly with Six Poles
- 2712420200 - IP65 Rated 2m Robust Connector Assembly with Six Poles
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a durable connector assembly tailored for high-demand applications, this assembly features a socket connector type Constructed to meet stringent standards, it offers compatibility with Lapp ÖLFLEX CLASSIC 110 BK 7G25 cables and similar models The assembly contains six poles and operates without shielding, making it a reliable choice Additionally, it complies with environmental guidelines and meets RoHS standards, though some exemptions apply.
Its exceptional ingress protection rated at IP65 ensures dependable performance in diverse environmental conditions.
Features and Benefits:
•IP65 protection degree.
•Six poles.
•Compliant with RoHS and REACH SVHC.
•Angled cable entry.
•Made from durable plastic housing.
Specifications:
| Nominal voltage | 500 V |
| Pin arrangement | 1:1, numbered cores |
| Cable length | 2 m |
| Core cross-section | 2.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 7G2.5 or similar |
| Number of wires | 7 |
| Outside diameter | 11.1 mm |
| Sheath material | PVC |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
