2712360500 - RoHS Compliant 24-Pole Heavy-Duty Connector Assembly, 5m 1.5mm²
2712360500 - RoHS Compliant 24-Pole Heavy-Duty Connector Assembly, 5m 1.5mm²
SKU: SKU: 2712360500 Download PDF
- 2712360500 - RoHS Compliant 24-Pole Heavy-Duty Connector Assembly, 5m 1.5mm²
- 2712360500 - RoHS Compliant 24-Pole Heavy-Duty Connector Assembly, 5m 1.5mm²
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

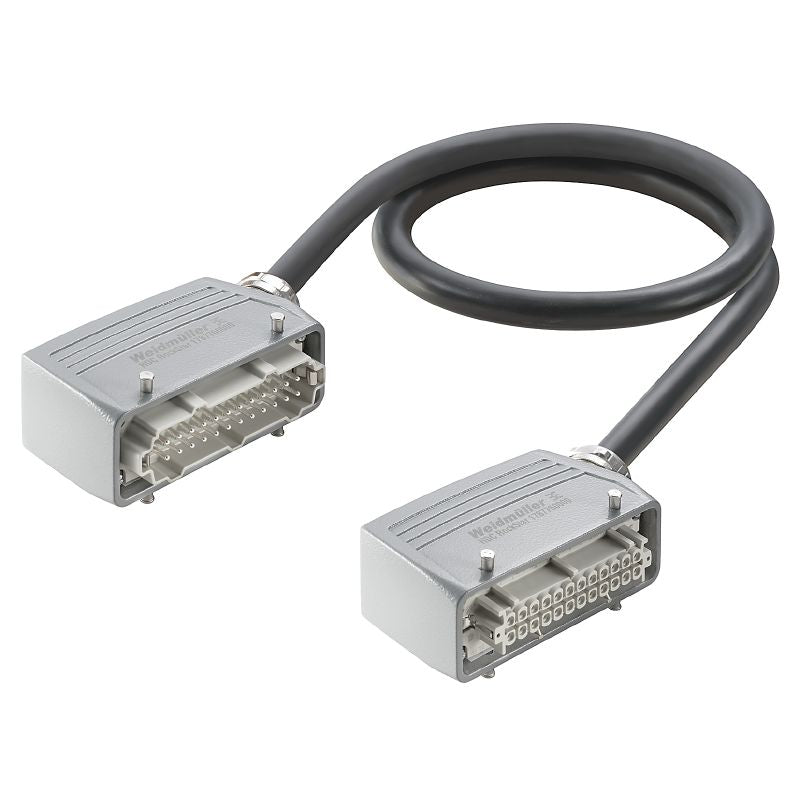

Introducing our heavy-duty connector assemblies that feature pin and socket connectors, fully compatible with Lapp ÖLFLEX CLASSIC 110 BK 25G15 and similar specifications These non-shielded connectors encompass 24 poles and boast a robust construction that meets RoHS standards Weighing in at 2,4684 g, they offer reliable performance with an operational temperature range of -40 °C to 80 °C, making them ideal for demanding environments.
Features and Benefits:
•Pin arrangement is 1:1 and has numbered cores.
•Protection degree is IP65.
•Made with diecast aluminum housing.
•Halogen-free insulation and sheath material are PVC.
•Sheathing color is black.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 24 |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 5 m |
| Core cross-section | 1.5 mm² |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
