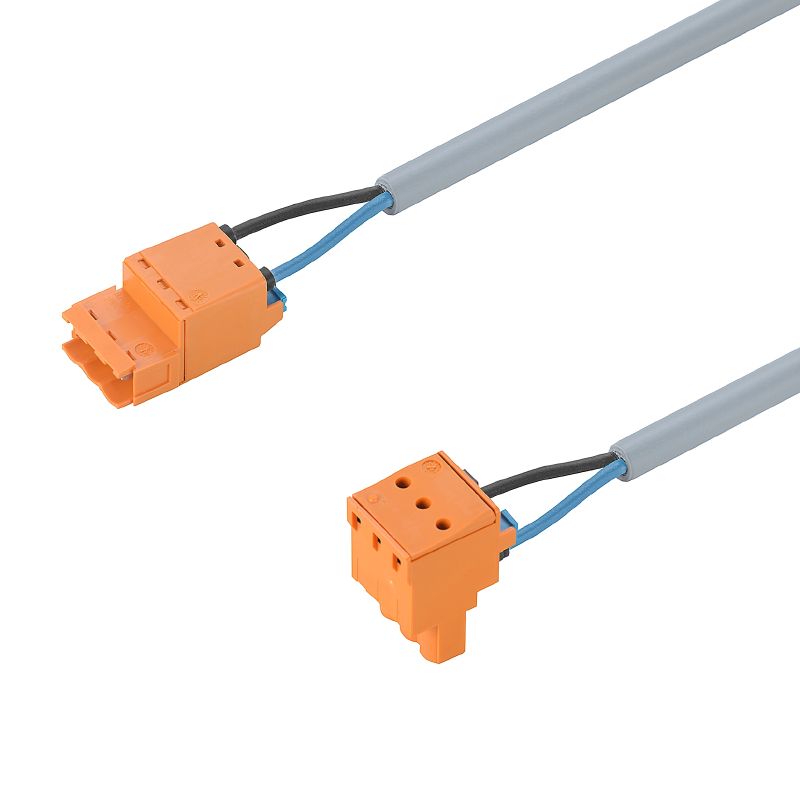

2775910033 - 0.33m Smart Metering Cable with IP20 Connectors (Pack of 10)
2775910033 - 0.33m Smart Metering Cable with IP20 Connectors (Pack of 10)
SKU: SKU: 2775910033 Download PDF
- 2775910033 - 0.33m Smart Metering Cable with IP20 Connectors (Pack of 10)
- 2775910033 - 0.33m Smart Metering Cable with IP20 Connectors (Pack of 10)
Couldn't load pickup availability
Description:
Introducing the Smart Metering Cable Assemblies, expertly crafted for multiple applications with a voltage capacity of 600 V and a maximum impulse withstand rating of 6 kV Each assembly is equipped with reliable pin and socket connectors and boasts an IP20 protection rating for enhanced safety Measuring 033 m in length, the cable features a core cross-section of 15 mm² and supports a nominal current of 18.
5 A Compliant with RoHS standards without exemptions, the assembly is constructed from durable PUR/TPE material, encased in an attractive grey sheath.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Protection degree of IP20.
•Connectors have a straight and angled cable entry.
•Temperature range for moving applications from -25 °C to 90 °C.
•Bending radius minimum for moving is 15 times the cable diameter.
•Bending radius minimum for stationary is 10 times the cable diameter.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 600 V |
| Number of poles | 2 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 0.33 m |
| Cable Material | PUR/TPE |
| Core cross-section | 1.5 mm² |
| Insulation | PP |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Number of wires | 2 |
| Temperature range, stationary, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
| Halogen | No |
| Shielded | No |
