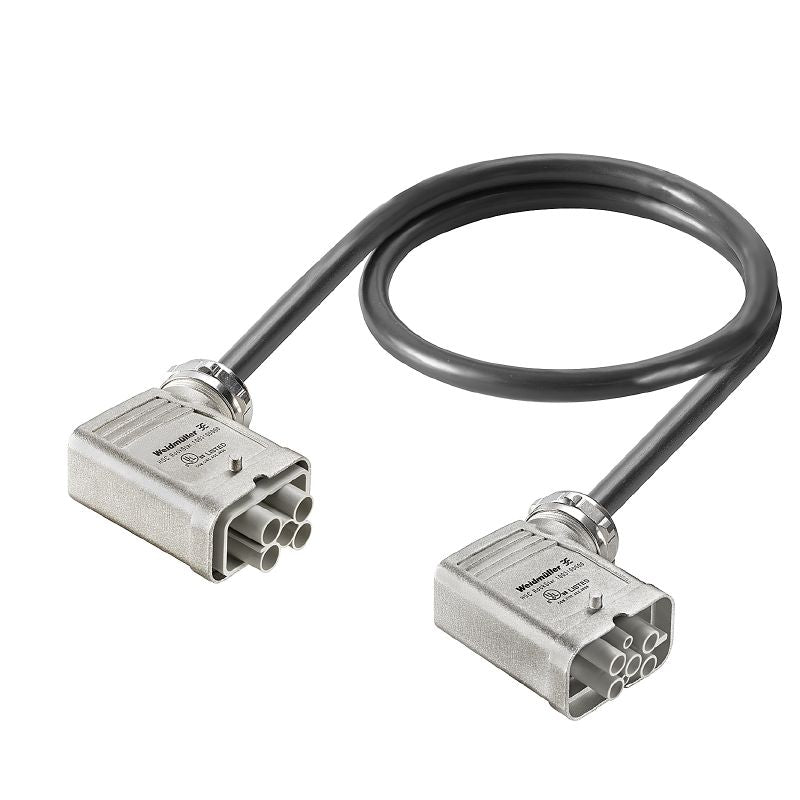

2712380500 - 5m Heavy Duty Connector Assembly, 6 Poles, Zinc Diecast
2712380500 - 5m Heavy Duty Connector Assembly, 6 Poles, Zinc Diecast
SKU: SKU: 2712380500 Download PDF
- 2712380500 - 5m Heavy Duty Connector Assembly, 6 Poles, Zinc Diecast
- 2712380500 - 5m Heavy Duty Connector Assembly, 6 Poles, Zinc Diecast
Couldn't load pickup availability
Description:
Discover the ultimate solution for secure connections with this heavy-duty connector assembly Featuring six poles, this assembly includes pin and socket connectors that guarantee reliability Crafted from durable zinc diecast material, it allows for angled cable entry, enhancing versatility in various applications Compliant with important standards, including ETIM and ECLASS, this connector also meets RoHS regulations.
With a temperature tolerance ranging from -40 °C to 80 °C, it is built to perform effectively in a range of environments.
Features and Benefits:
•IP65 protection degree.
•Halogen-free.
•Includes both male and female connectors.
•Connector sizes are standardized at size 6.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Pin arrangement | 1:1, numbered cores |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 5 m |
| Core cross-section | 2.5 mm² |
| Insulation | PVC |
| Line type | Helukabel JZ-500-C black 7G2.5 or similar |
| Number of wires | 7 |
| Outside diameter | 12.1 mm |
| Sheath material | PVC |
| Shielded | Yes |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -10 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
