Description:

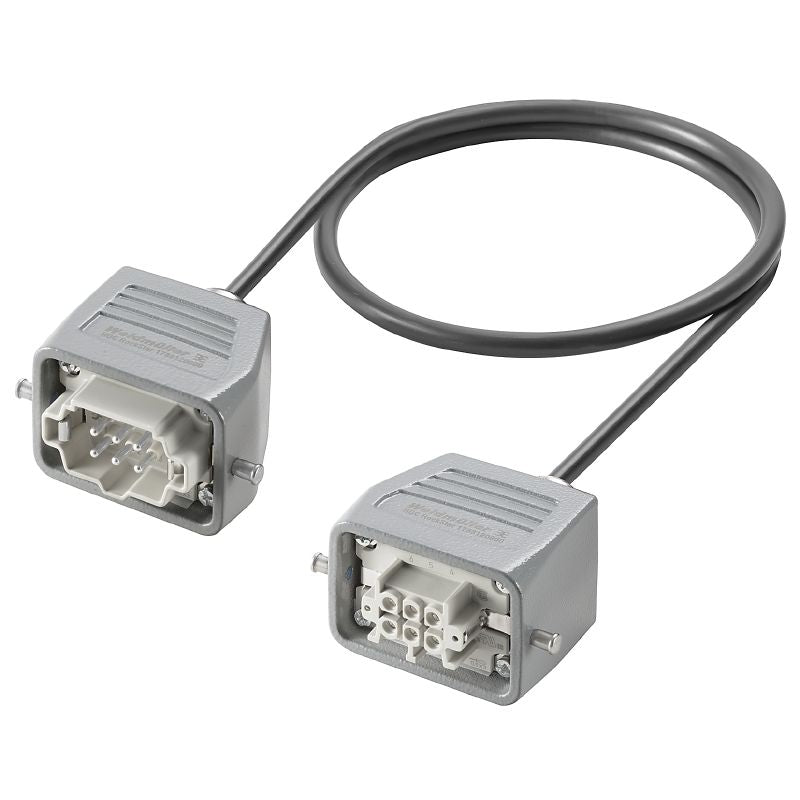

Introducing the CH-HEAA-HEAB-06-0500-AH heavy-duty connector assembly, engineered for dependable connections in various applications This assembly includes a socket connector that provides excellent strain relief, ensuring durability Crafted from robust diecast aluminum, the housing guarantees longevity and resilience With 6 poles and a nominal voltage rating of 500 V, this connector is designed for reliable performance.
It meets important environmental regulations, including RoHS and REACH, for safe operation Capable of withstanding extreme temperatures ranging from -40 °C to 80 °C, it is designed for versatility in challenging conditions The connector has an outer diameter of 89 mm and comes with detailed technical specifications for compatibility with cables and other connectors.
Features and Benefits:
•Compliant with RoHS and REACH environmental standards.
•Connector made from durable diecast aluminum.
•Supports a wide temperature range from -40 °C to 80 °C.
•Connector designed for straightforward installation with a straight cable entry.
•Halogen-free insulation for safety.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Protection degree | IP65 |
| Cable length | 5 m |
| Core cross-section | 1.5 mm² |
| Sheath material | PVC |
| Outside diameter | 8.9 mm |
| Temperature range, moving, max | 70 °C |
| Temperature range, moving, min | -15 °C |
| Temperature range, stationary, max | 80 °C |
| Temperature range, stationary, min | -40 °C |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
