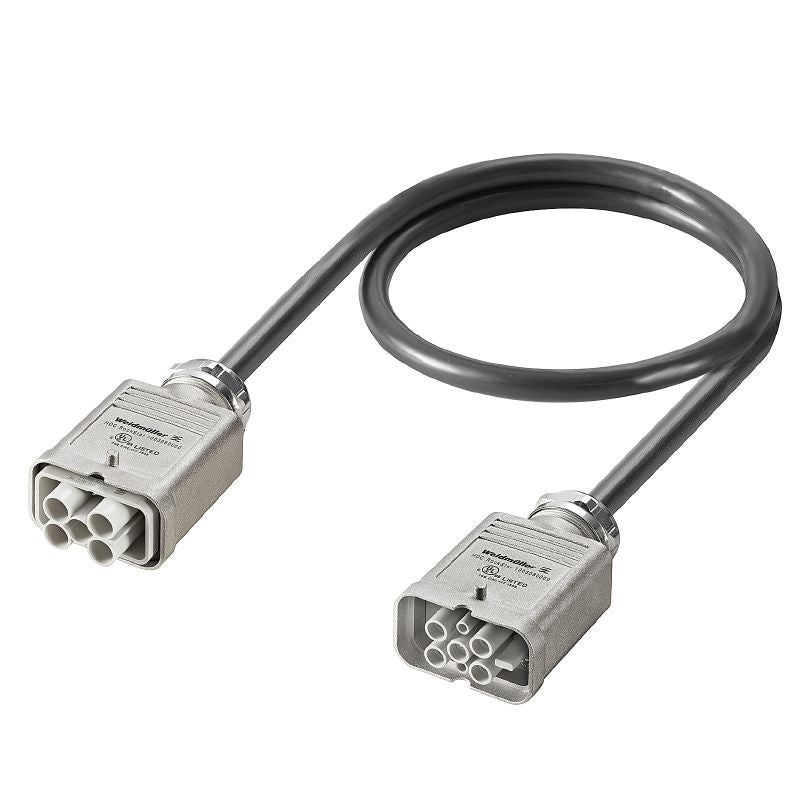

2712370100 - Heavy-Duty 6-Pole Connector Assembly, 1m, 500V, Die-Cast Zinc
2712370100 - Heavy-Duty 6-Pole Connector Assembly, 1m, 500V, Die-Cast Zinc
SKU: SKU: 2712370100 Download PDF
- 2712370100 - Heavy-Duty 6-Pole Connector Assembly, 1m, 500V, Die-Cast Zinc
- 2712370100 - Heavy-Duty 6-Pole Connector Assembly, 1m, 500V, Die-Cast Zinc
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing our robust connector assemblies, which come with both pin and socket connectors for versatile applications Crafted from Helukabel JZ-500-C black material, these connectors are shielded and feature 6 poles for enhanced performance Built to withstand various environments, they offer reliability and durability while adhering to RoHS standards Made from die-cast zinc, this product belongs to the HQ series and operates with a nominal voltage of 500V, making it an excellent choice for demanding tasks.
Features and Benefits:
•Compliant with RoHS and other environmental standards.
•IP65 protection degree.
•Die-cast zinc housing material for durability.
•Features a straight cable entry.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Pin arrangement | 1:1, numbered cores |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 1 m |
| Core cross-section | 2.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Number of wires | 7 |
| Outside diameter | 12.1 mm |
| Sheath material | PVC |
| Shielded | Yes |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -10 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
