2712280100 - 1m Heavy-Duty 10-Pole Connector Assembly, No Shielding
2712280100 - 1m Heavy-Duty 10-Pole Connector Assembly, No Shielding
SKU: SKU: 2712280100 Download PDF
- 2712280100 - 1m Heavy-Duty 10-Pole Connector Assembly, No Shielding
- 2712280100 - 1m Heavy-Duty 10-Pole Connector Assembly, No Shielding
Couldn't load pickup availability
Description:

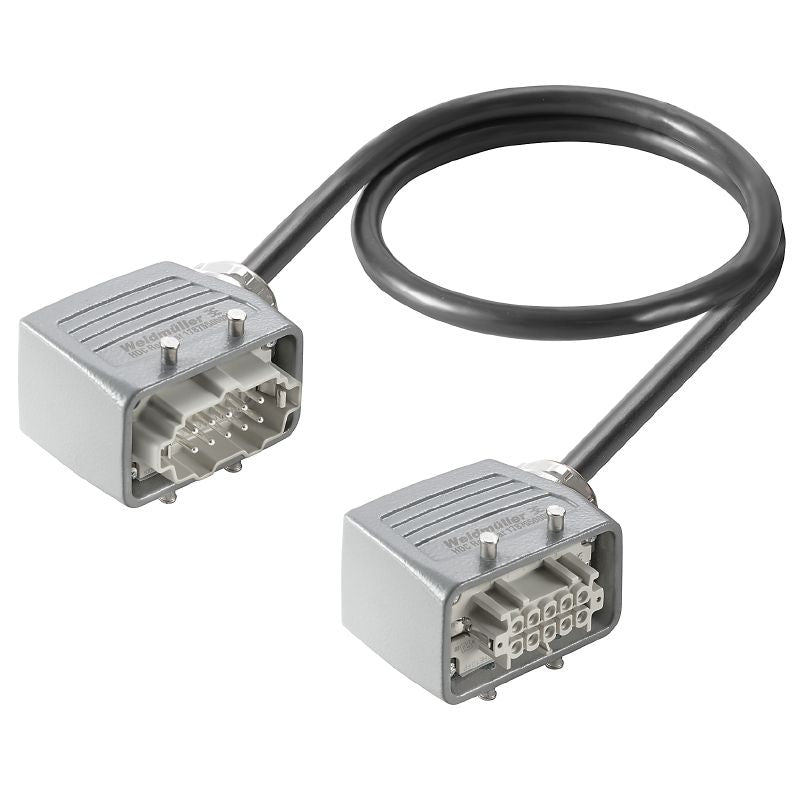

Introducing a heavy-duty connector system that combines strength and reliability This assembly features a pin and socket design, utilizing the Lapp ÖLFLEX CLASSIC 110 BK 12G15 or a comparable model With a total of 10 poles, this connector does not include shielding, making it suitable for a variety of applications Compliant with ROHS standards and recognized for applicable exemptions, this connector is built to meet industry requirements.
Features and Benefits:
•Compliant with ROHS and REACH regulations.
•Degree of protection IP65.
•Numbered cores for pin arrangement.
Specifications:
| Diameter | 12 mm |
| Net weight | 887.376 g |
| Limit temperature | -40 °C ... 80 °C |
| Nominal voltage | 500 V |
| Number of poles | 10 |
| Cable entry | angled |
| Housing main material | Diecast aluminium |
| Sheath material | PVC |
| Cable length | 1 m |
| Core cross-section | 1.5 mm² |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Sheathing colour | black |
| Halogen | Yes |
| Insulation | PVC |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 |
