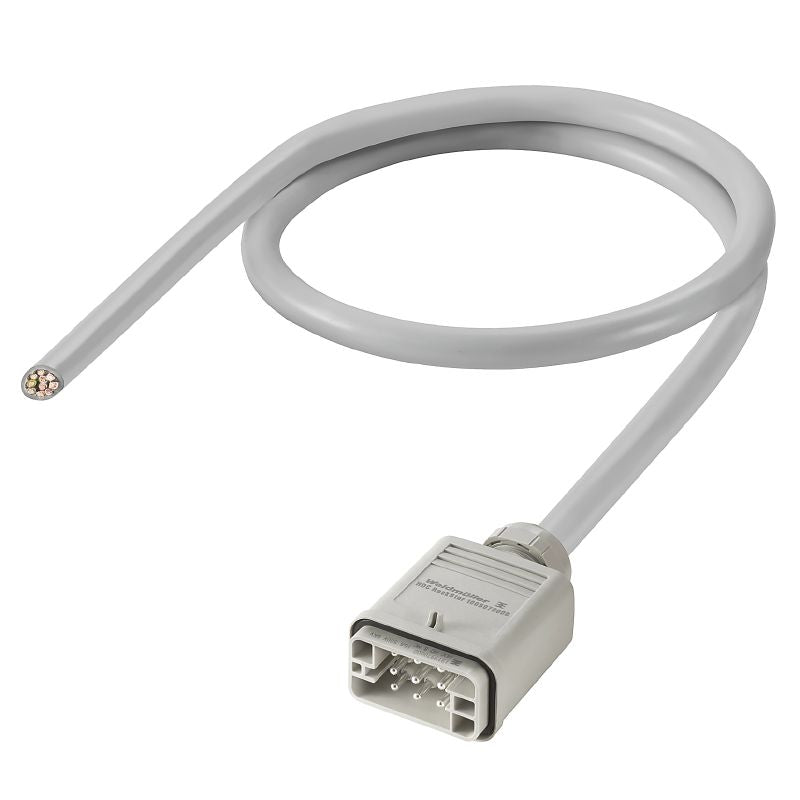

2712510500 - 14.8mm Heavy Duty Connector Assembly, 8 Poles, 500V
2712510500 - 14.8mm Heavy Duty Connector Assembly, 8 Poles, 500V
SKU: SKU: 2712510500 Download PDF
- 2712510500 - 14.8mm Heavy Duty Connector Assembly, 8 Poles, 500V
- 2712510500 - 14.8mm Heavy Duty Connector Assembly, 8 Poles, 500V
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the CH-HOBD-XXXX-08-0500-AA, a robust connector assembly equipped with 8 poles Constructed with high-quality Helukabel JZ-500 10G25 components, this assembly is designed for reliable performance, operating at a nominal voltage of 500 V It can withstand temperature extremes from -40 °C to 80 °C and is free from shielding Complying with RoHS standards, this connector also includes RoHS exemption.
The individual components are identifiable by their specific order numbers, ensuring easy replacement and maintenance.
Features and Benefits:
•IP65 protection degree.
•1:1 pin arrangement with numbered cores.
•Housing material made of plastic.
•Grey PVC sheathing.
•Halogen-free insulation.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Nominal voltage | 500 V |
| Number of poles | 8 |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Core cross-section | 2.5 mm² |
| Line type | Helukabel JZ-500 10G2.5 or similar |
| Number of wires | 10 |
| Outside diameter | 14.8 mm |
| Sheath material | PVC |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
| SCIP | 1344e4a2-b558-4ad0-95d1-5c6df3fdd75e |
