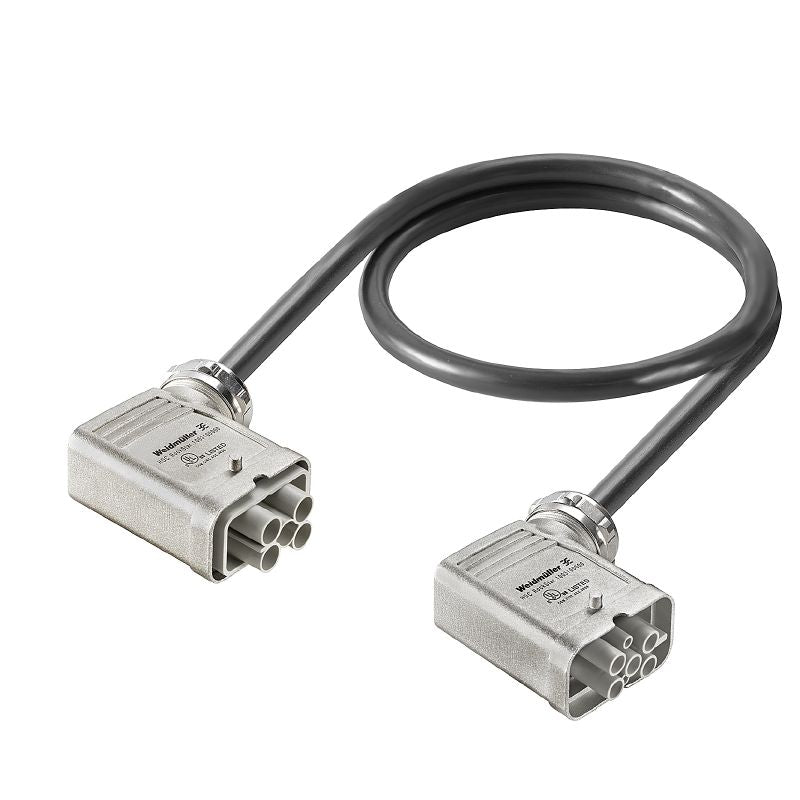

2712380200 - Heavy Duty 2m Connector Assembly for Helukabel Cables
2712380200 - Heavy Duty 2m Connector Assembly for Helukabel Cables
SKU: SKU: 2712380200 Download PDF
- 2712380200 - Heavy Duty 2m Connector Assembly for Helukabel Cables
- 2712380200 - Heavy Duty 2m Connector Assembly for Helukabel Cables
Couldn't load pickup availability
Description:
Introducing a robust connector assembly that comprises a pin and socket design This heavy-duty item is engineered for compatibility with Helukabel JZ-500-C black 7G25 cables or similar alternatives With 6 poles in total, it offers reliable connectivity Weighing 1,17431 grams, this assembly meets RoHS environmental regulations and is built to function effectively within a temperature range of -40 °C to 80 °C.
Features and Benefits:
•IP65 protection degree.
•Angled cable entry.
•Zinc diecast housing material.
•Nominal voltage of 500V.
•Includes numerous individual connector components.
Specifications:
| Number of poles | 6 |
| Core cross-section | 2.5 mm² |
| Cable length | 2 m |
| Line type | Helukabel JZ-500-C black 7G2.5 or similar |
| Number of wires | 7 |
| Outside diameter | 12.1 mm |
| Sheath material | PVC |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -10 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
