2712450200 - RoHS Compliant 8-Pole Connector Assembly, 2m Length
2712450200 - RoHS Compliant 8-Pole Connector Assembly, 2m Length
SKU: SKU: 2712450200 Download PDF
- 2712450200 - RoHS Compliant 8-Pole Connector Assembly, 2m Length
- 2712450200 - RoHS Compliant 8-Pole Connector Assembly, 2m Length
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

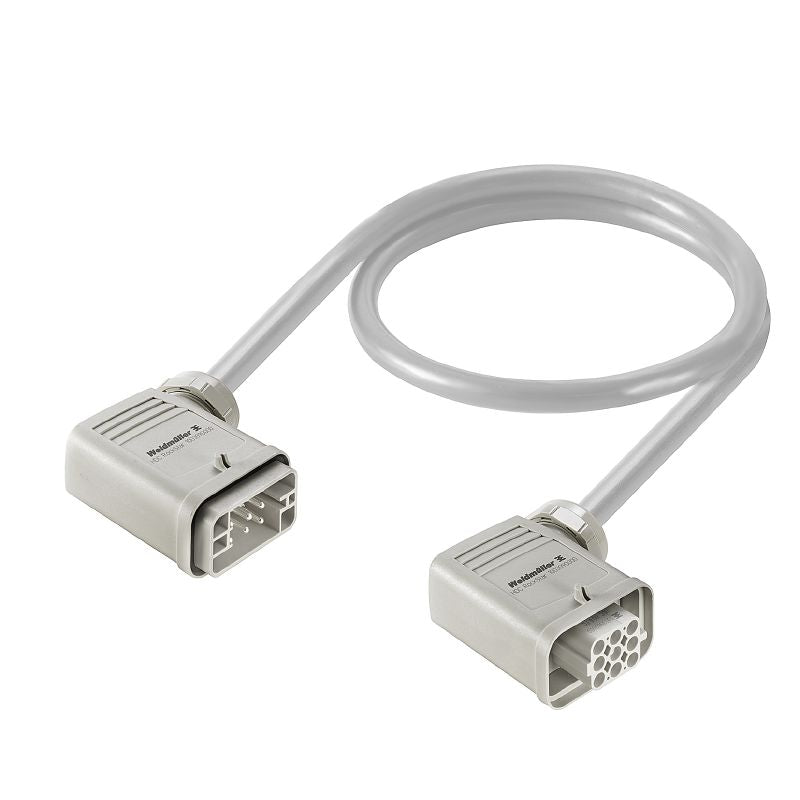

Discover the robustness of this heavy-duty connector assembly, comprising a pin and socket connector that is specifically compatible with Helukabel JZ-500 10G25 and similar models Featuring an 8-pole design without shielding, it is built from durable plastic and allows for angled cable entry The assembly includes both male and female connectors with clearly numbered pin arrangements for easy installation.
This product is RoHS compliant with designated exemptions, ensuring it adheres to environmental regulations concerning hazardous substances.
Features and Benefits:
•IP65 protection degree.
•Nominal voltage of 500V.
•Bending radius for moving conditions is 7.5 times the cable diameter.
•Bending radius for stationary conditions is 4 times the cable diameter.
•PVC insulation.
•Grey sheath material.
•Halogen-free.
•10 wires contained.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Nominal voltage | 500 V |
| Number of poles | 8 |
| Pin arrangement | 1:1, numbered cores |
| Protection degree | IP65 |
| Cable length | 2 m |
| Core cross-section | 2.5 mm² |
| Outside diameter | 14.8 mm |
| Sheathing colour | grey |
| Shielded | No |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
