Description:

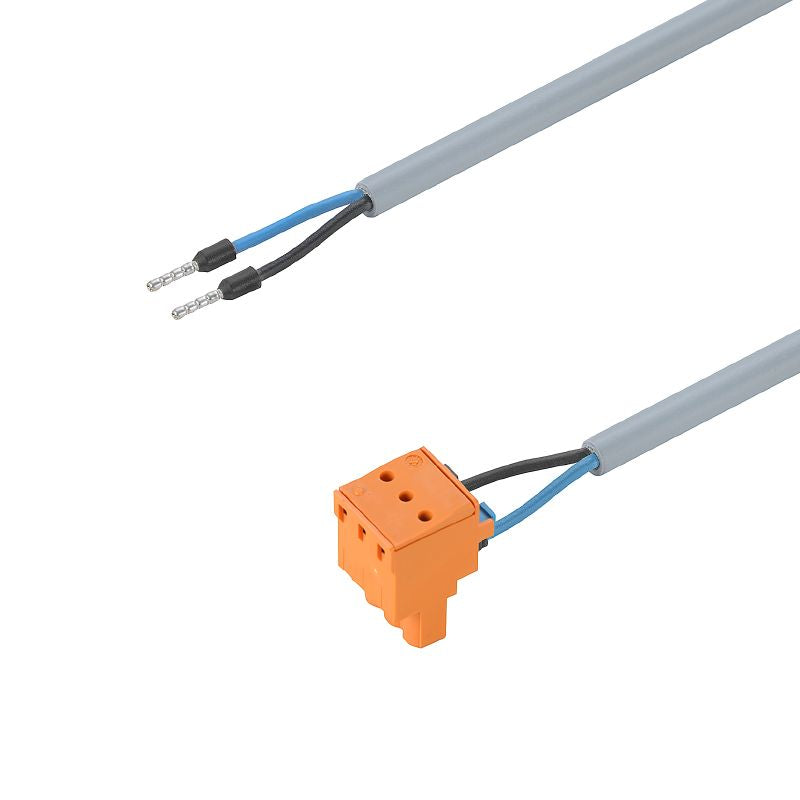

Introducing the Smart Metering Cable Assemblies, expertly engineered for reliable performance with a nominal current of 185 A and a voltage rating of 600 V These assemblies come equipped with a socket connector featuring an IP20 protection grade, capable of handling impulse voltages up to 6 kV Each assembly comprises two 15 mm² poles and is constructed from high-quality materials like PUR and TPE, ensuring both flexibility and long-lasting usage.
With a length of 095 m and an outer diameter of 64 mm, this cable meets RoHS standards and is free from REACH SVHC beyond 01 wt%, making it a safe and compliant choice for your metering needs.
Features and Benefits:
•Compliant with RoHS.
•No SVHC above 0.1 wt%.
•Protection degree IP20.
•Bending radii specified for moving and stationary applications.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 600 V |
| Number of poles | 2 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 0.95 m |
| Cable Material | PUR/ TPE |
| Core cross-section | 1.5 mm² |
| Insulation | PP |
| Line type | KB PUR US 2X1.5 GY XX 6KV |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Temperature range, moving, max. | 90 °C |
| Temperature range, moving, min. | -25 °C |
| Temperature range, stationary, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
