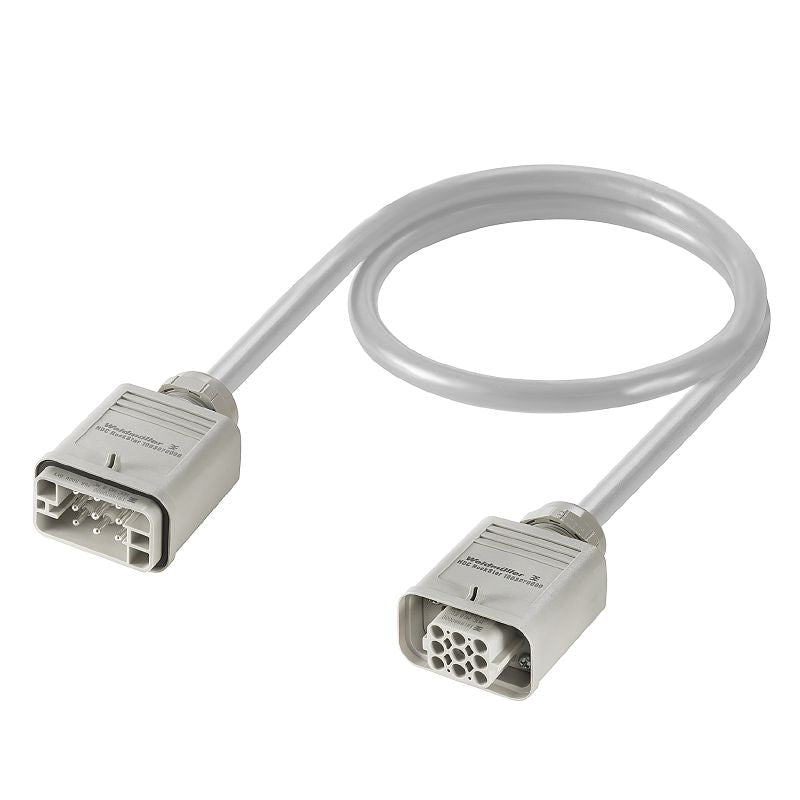

2712470100 - 8-Pole Heavy-Duty Connector Assembly for JZ-500, 1m Length
2712470100 - 8-Pole Heavy-Duty Connector Assembly for JZ-500, 1m Length
SKU: SKU: 2712470100 Download PDF
- 2712470100 - 8-Pole Heavy-Duty Connector Assembly for JZ-500, 1m Length
- 2712470100 - 8-Pole Heavy-Duty Connector Assembly for JZ-500, 1m Length
Couldn't load pickup availability
Description:
Introducing a robust connector assembly engineered for use with Helukabel JZ-500 10G25 and similar applications This assembly incorporates both pin and socket connectors and features eight poles for optimal functionality Its shielded design ensures reliable performance in a variety of demanding conditions Compliant with RoHS exemptions, this connector weighs 517521 grams and can efficiently operate in a wide temperature range from -40 °C to 80 °C, making it an excellent choice for diverse environments.
Features and Benefits:
•Connector type includes both male and female options.
•Protection degree of IP65 for reliable sealing against dust and water.
•Cable entry is straight for ease of installation.
•Halogen-free materials used in construction.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 8 |
| Pin arrangement | 1:1, numbered cores |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 1 m |
| Core cross-section | 2.5 mm² |
| Insulation | PVC |
| Sheath material | PVC |
| Outside diameter | 14.8 mm |
| Sheathing colour | grey |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
