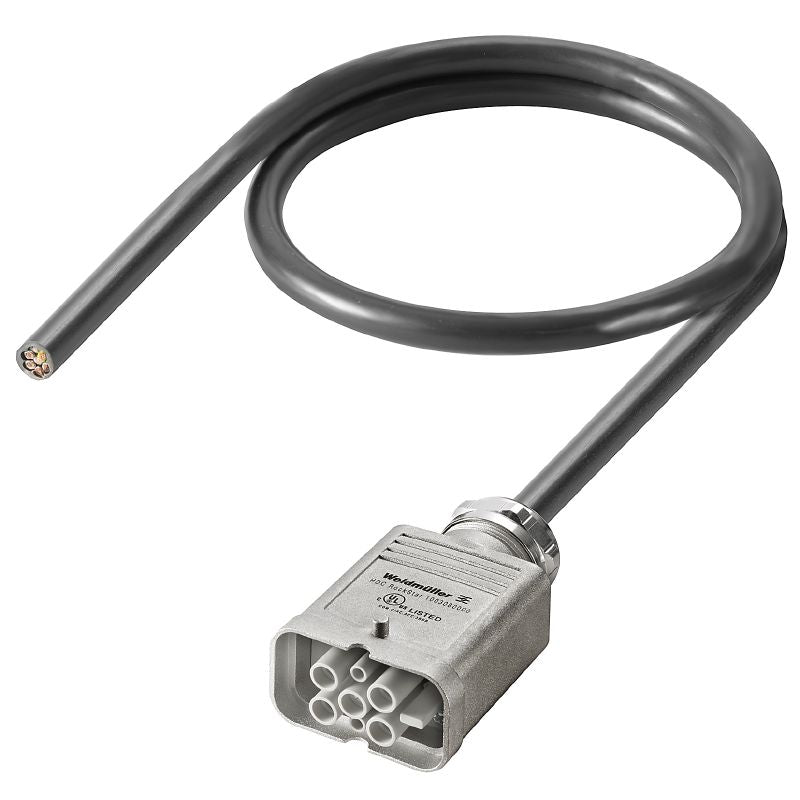

2712390200 - 6-Pole Heavy-Duty Socket Connector Assembly, Shielded Design
2712390200 - 6-Pole Heavy-Duty Socket Connector Assembly, Shielded Design
SKU: SKU: 2712390200 Download PDF
- 2712390200 - 6-Pole Heavy-Duty Socket Connector Assembly, Shielded Design
- 2712390200 - 6-Pole Heavy-Duty Socket Connector Assembly, Shielded Design
Couldn't load pickup availability
Description:
Introducing our robust connector assemblies designed for optimal performance, featuring a reliable socket connector that adheres to Helukabel JZ-500-C specifications in classic black This shielded connector includes six poles, making it ideal for a variety of applications that demand dependable connectivity Perfect for those who require sturdy and efficient solutions in their projects.
Features and Benefits:
•Compliant with RoHS standards.
•IP65 protection degree.
•Nominal voltage of 500V.
•Core cross-section of 2.5 mm².
•Bending radius minimum for moving applications is 10 times the cable diameter.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Connector type | Female |
| Cable entry | straight |
| Housing main material | Die-cast zinc |
| Cable length | 2 m |
| Sheath material | PVC |
| Outside diameter | 12.1 mm |
| Shielded | Yes |
| Number of wires | 7 |
| Insulation | PVC |
| Temperature range (moving, max) | 80 °C |
| Temperature range (moving, min) | -10 °C |
| Temperature range (stationary, max) | 80 °C |
| Temperature range (stationary, min) | -40 °C |
