Description:

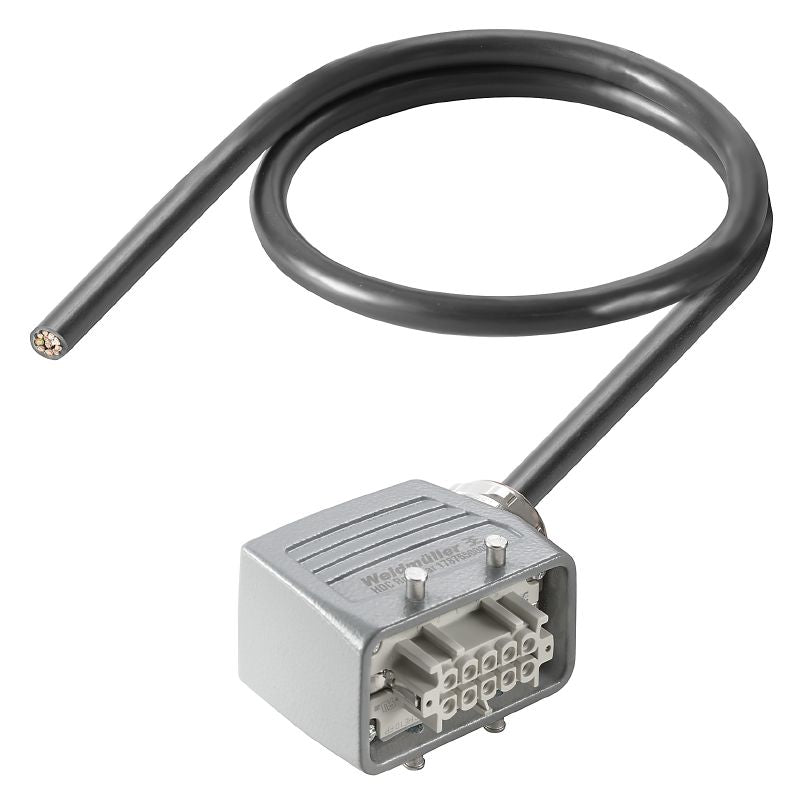

Introducing the robust connector assembly, designated as part number CH-HHAB-XXXX-10-0500-AE This assembly includes a socket connector and is engineered for compatibility with Lapp ÖLFLEX CLASSIC 110 BK 12G15 or similar models It showcases a 10-pole design without shielding, ensuring reliable performance This product adheres to RoHS regulations and operates efficiently within a temperature range of -40 °C to 80 °C.
Features and Benefits:
•Socket connector type.
•Angle cable entry.
•Diecast aluminium housing.
•Protection degree IP65.
•Halogen free insulation.
Specifications:
| Diameter | 12 mm |
| Nominal voltage | 500 V |
| Pin arrangement | 1:1, numbered cores |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 5 m |
| Core cross-section | 1.5 mm² |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 12G1.5 or similar |
| Number of wires | 12 |
| Sheath material | PVC |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
