2712420100 - 1m Heavy Duty 6-Pole Connector Assembly, RoHS Compliant
2712420100 - 1m Heavy Duty 6-Pole Connector Assembly, RoHS Compliant
SKU: SKU: 2712420100 Download PDF
- 2712420100 - 1m Heavy Duty 6-Pole Connector Assembly, RoHS Compliant
- 2712420100 - 1m Heavy Duty 6-Pole Connector Assembly, RoHS Compliant
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

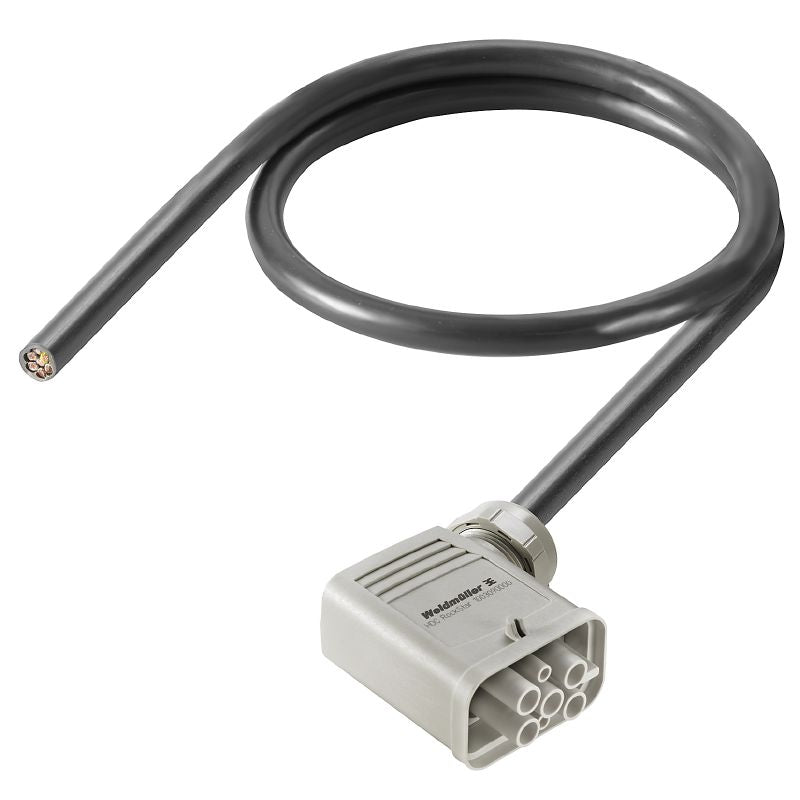

Discover the robust CH-HPBB-XXXX-06-0100-AI heavy-duty connector assembly, designed for durability and performance This assembly features a reliable socket connector from the Lapp ÖLFLEX CLASSIC 110 BK 7G25 series, or a compatible equivalent, and includes 6 poles, unshielded for versatile applications Weighing approximately 449118 grams, it is engineered to function effectively across a temperature spectrum of -40 °C to 80 °C.
Furthermore, this connector assembly meets RoHS compliance, ensuring it adheres to environmental standards.
Features and Benefits:
•Complies with RoHS exemptions.
•IP65 protection degree.
•Plastic housing.
•Female type connector.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Pin arrangement | 1:1, numbered cores |
| Cable length | 1 m |
| Core cross-section | 2.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 7G2.5 or similar |
| Number of wires | 7 |
| Outside diameter | 11.1 mm |
| Sheath material | PVC |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
| SCIP | 81ca46c4-2930-4739-aa54-e07d33c98f2c |
