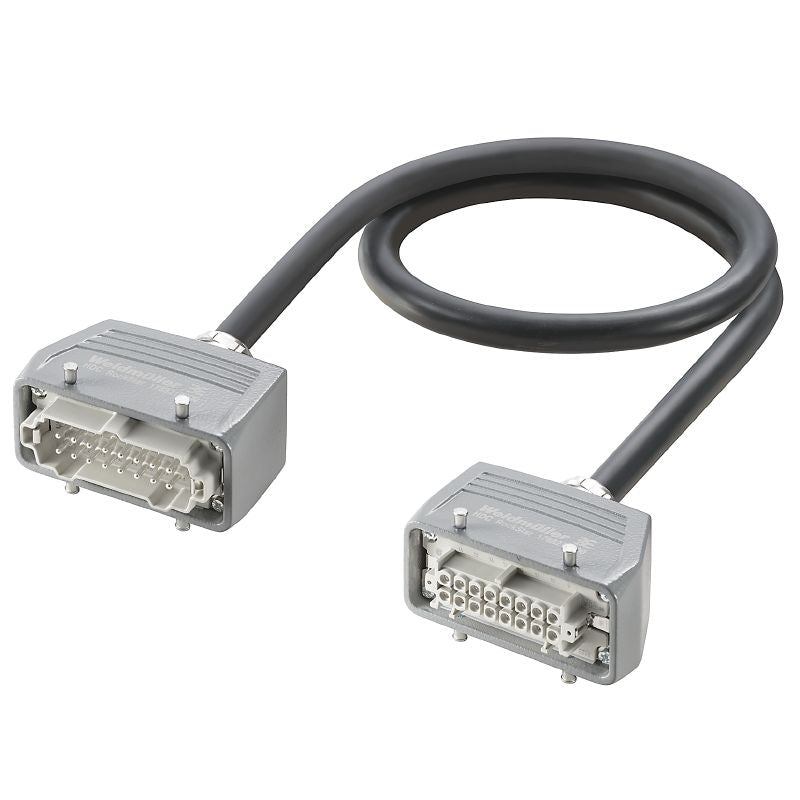

2712330200 - 2m Shielded 16-Pole Heavy Duty Connector Assembly
2712330200 - 2m Shielded 16-Pole Heavy Duty Connector Assembly
SKU: SKU: 2712330200 Download PDF
- 2712330200 - 2m Shielded 16-Pole Heavy Duty Connector Assembly
- 2712330200 - 2m Shielded 16-Pole Heavy Duty Connector Assembly
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Upgrade your connectivity with this heavy-duty connector assembly, designed for compatibility with Lapp ÖLFLEX CLASSIC 110 BK 18G15 and similar variants Featuring a robust shield and 16 poles, this connector guarantees a secure and dependable connection It adheres to RoHS and REACH regulations, ensuring environmental compliance with applicable exemptions With a wide operational temperature range, this assembly is suitable for various applications, enhancing its versatility and reliability in demanding environments.
Features and Benefits:
•Connector housing made of diecast aluminium.
•IP65 protection degree.
•Compliant with RoHS and REACH regulations.
•Bending radius minimum for moving applications is 10 times the cable diameter.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 16 |
| Pin arrangement | 1:1, numbered cores |
| Cable length | 2 m |
| Core cross-section | 1.5 mm² |
| Outside diameter | 14.4 mm |
| Insulation | PVC |
| Sheath material | PVC |
| Temperature range (moving, max) | 70 °C |
| Temperature range (moving, min) | -15 °C |
| Temperature range (stationary, max) | 80 °C |
| Temperature range (stationary, min) | -40 °C |
| Halogen | Yes |
| Shielded | No |
