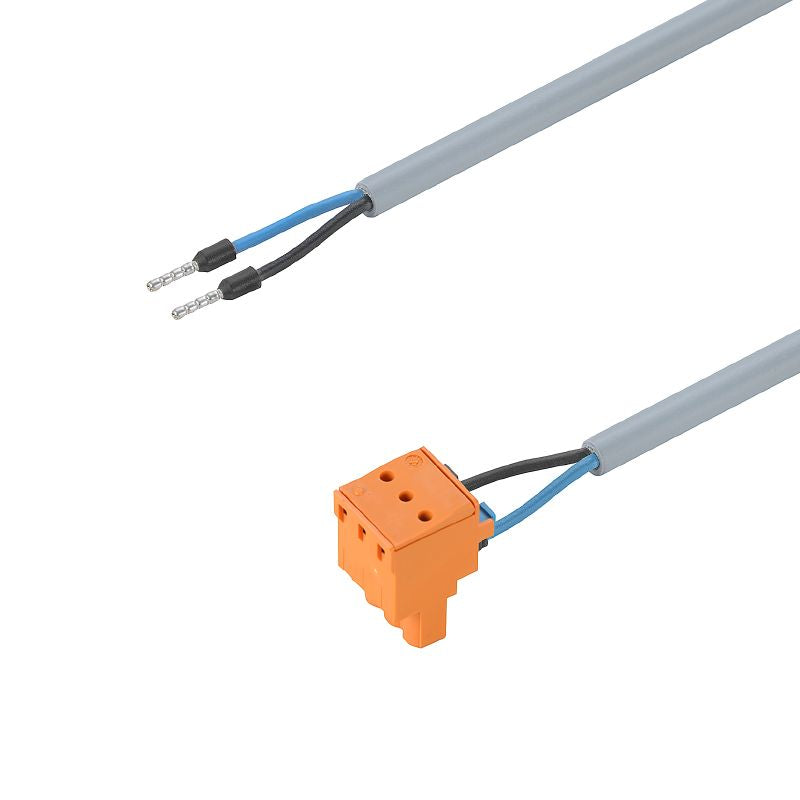

2817650080 - 0.8m Smart Metering Cable Assembly, 6kV, IP20 Rated (Pack of 10)
2817650080 - 0.8m Smart Metering Cable Assembly, 6kV, IP20 Rated (Pack of 10)
SKU: SKU: 2817650080 Download PDF
- 2817650080 - 0.8m Smart Metering Cable Assembly, 6kV, IP20 Rated (Pack of 10)
- 2817650080 - 0.8m Smart Metering Cable Assembly, 6kV, IP20 Rated (Pack of 10)
Couldn't load pickup availability
Description:
Introducing the Smart Metering Cable Assemblies, engineered specifically for smart metering uses With a robust capability of 6 kV, these assemblies are equipped with a socket connector and boast an IP20 rating They support a nominal voltage of 600 V and a current rating of 185 A Measuring 08 meters in length, the cable is made from high-quality KB PUR US 2X15 GY XX 6KV material and adheres to RoHS standards without exceptions.
Perfect for reliable performance in metering applications.
Features and Benefits:
•Compliant with RoHS and does not contain any SVHC above 0.1 wt%.
•Constructed from durable materials including PUR/TPE with a grey outer sheathing.
•Suitable for a wide temperature range: -40 °C to +90 °C for stationary and -25 °C to +90 °C for moving applications.
•Has an IP20 protection degree ensuring adequate protection in its intended environment.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 600 V |
| Number of poles | 2 |
| Protection degree | IP20 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 0.8 m |
| Cable Material | PUR/TPE |
| Core cross-section | 1.5 mm² |
| Bending radius, min., moving | 15 x cable diameter |
| Bending radius, min., stationary | 10 x cable diameter |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Insulation | PP |
| Line type | KB PUR US 2X1.5 GY XX 6KV |
| Number of wires | 2 |
| Halogen | No |
| Shielded | No |
| Temperature range, moving, min. | -25 °C |
| Temperature range, moving, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
| Temperature range, stationary, max. | 90 °C |
