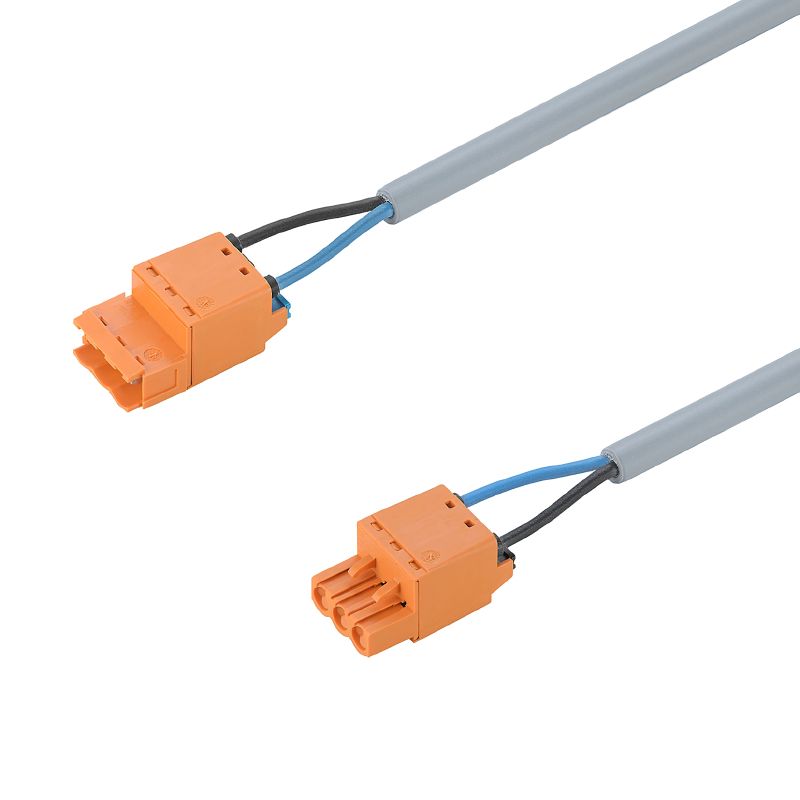

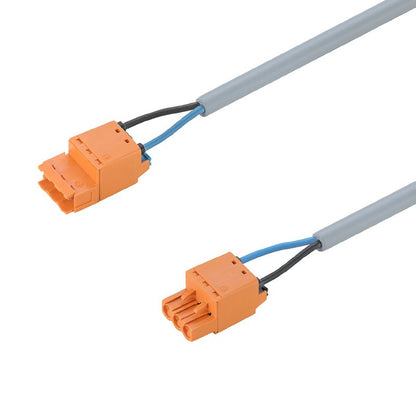

2775880080 - 0.8m Smart Metering Cable, 2x1.5mm², 6kV Durable Assembly (Pack of 10)
2775880080 - 0.8m Smart Metering Cable, 2x1.5mm², 6kV Durable Assembly (Pack of 10)
SKU: SKU: 2775880080 Download PDF
- 2775880080 - 0.8m Smart Metering Cable, 2x1.5mm², 6kV Durable Assembly (Pack of 10)
- 2775880080 - 0.8m Smart Metering Cable, 2x1.5mm², 6kV Durable Assembly (Pack of 10)
Couldn't load pickup availability
Description:
Introducing the Smart Metering Cable Assembly, tailored for high-voltage applications up to 6 kV and featuring a reliable pin configuration With an impressive IP20 protection level, this assembly is rated for use at voltages up to 600 V Measuring 08 meters in length, it boasts a core cross-section of 15 mm² Constructed from durable PUR and TPE materials, this cable is built to withstand diverse environmental conditions, making it an excellent choice for various settings.
Features and Benefits:
•Compliant with RoHS without exemptions.
•No SVHC above 0.1 wt%.
•Minimum bending radius for moving applications is 15 times the cable diameter.
•Stationary minimum bending radius is 10 times the cable diameter.
•Suitable for a maximum moving temperature of 90 °C.
•Stationary maximum temperature is 90 °C as well, with a minimum of -40 °C.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 600 V |
| Number of poles | 2 |
| Protection degree | IP20 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 0.8 m |
| Cable Material | PUR/ TPE |
| Core cross-section | 1.5 mm² |
| Halogen | No |
| Insulation | PP |
| Line type | KB PUR US 2X1.5 GY XX 6KV |
| Number of wires | 2 |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Shielded | No |
| Temperature range, moving, max. | 90 °C |
| Temperature range, moving, min. | -25 °C |
| Temperature range, stationary, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
| ETIM classification | EC001576 |
| ECLASS | 27-06-04-02 |
