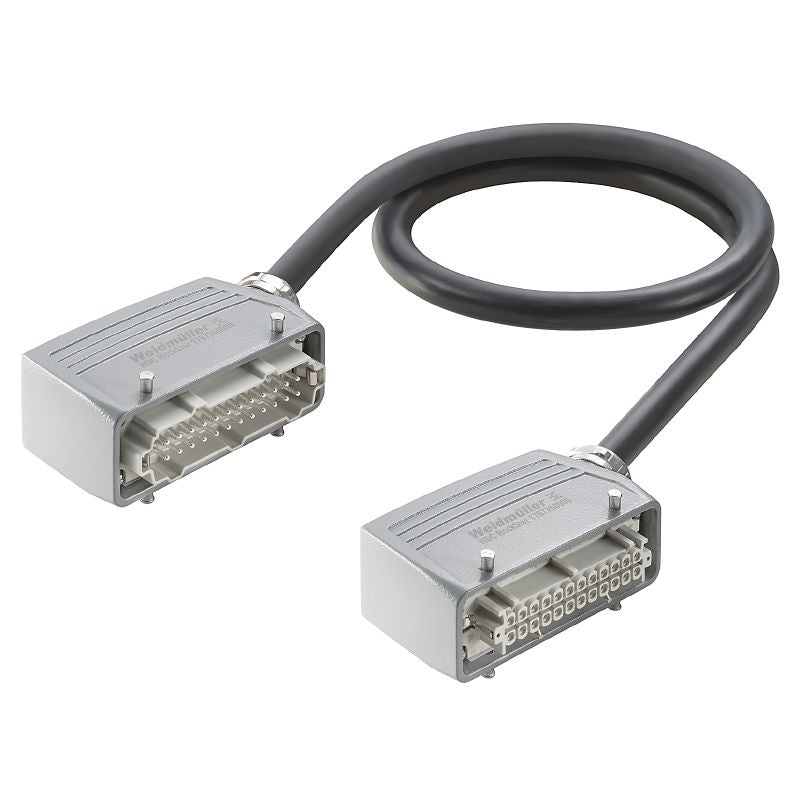

2712360200 - 24-Pole Heavy Duty Connector Assembly, 2m, -40°C to 80°C
2712360200 - 24-Pole Heavy Duty Connector Assembly, 2m, -40°C to 80°C
SKU: SKU: 2712360200 Download PDF
- 2712360200 - 24-Pole Heavy Duty Connector Assembly, 2m, -40°C to 80°C
- 2712360200 - 24-Pole Heavy Duty Connector Assembly, 2m, -40°C to 80°C
Couldn't load pickup availability
Description:
Introducing a robust connector assembly, the Lapp ÖLFLEX CLASSIC 110 BK 25G15, featuring both pin and socket connectors without shielding This assembly is engineered with 24 poles and operates safely within a temperature range of -40°C to 80°C It meets RoHS compliance standards and has a total weight of 1,5594 grams, making it a reliable choice for various applications.
Features and Benefits:
•Compliant with RoHS exemption status.
•IP65 protection degree.
•Diecast aluminium housing material.
•Suitable for various industrial applications.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 24 |
| Pin arrangement | 1:1, numbered cores |
| Cable entry | angled |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 2 m |
| Core cross-section | 1.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 25G1.5 or similar |
| Sheath material | PVC |
| Sheathing colour | black |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
