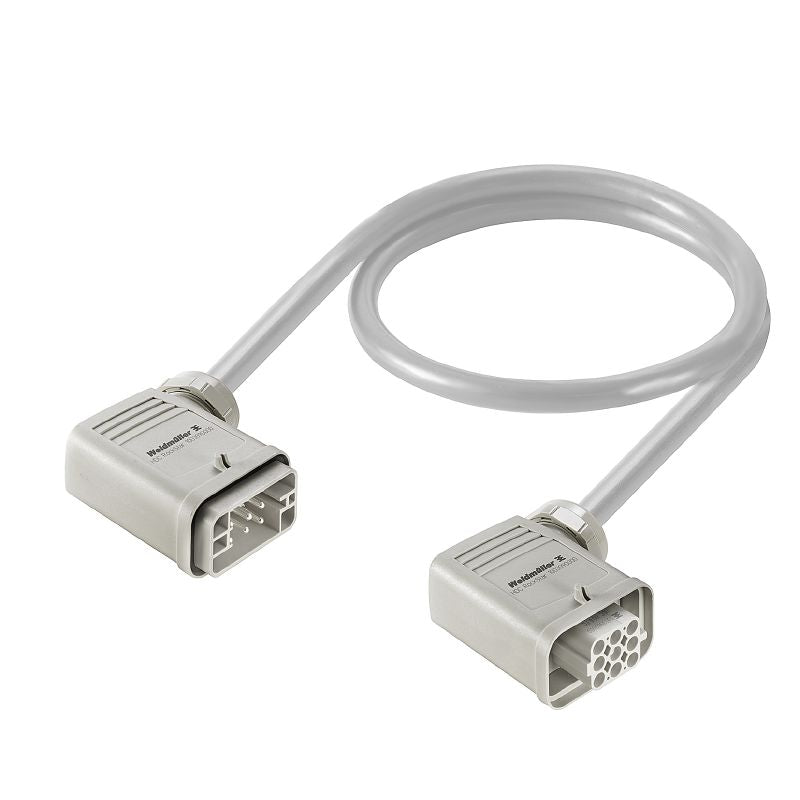

2712450100 - 8-Pole Heavy Duty Connector Assembly for Helukabel JZ-500
2712450100 - 8-Pole Heavy Duty Connector Assembly for Helukabel JZ-500
SKU: SKU: 2712450100 Download PDF
- 2712450100 - 8-Pole Heavy Duty Connector Assembly for Helukabel JZ-500
- 2712450100 - 8-Pole Heavy Duty Connector Assembly for Helukabel JZ-500
Couldn't load pickup availability
Description:
Introducing a robust connector assembly, tailored for use with Helukabel JZ-500 10G25 cables or equivalent models This heavy-duty assembly includes both pin and socket components and boasts 8 poles, ensuring reliable connectivity The connectors are non-shielded and adhere to RoHS standards, supporting a nominal voltage of 500V, making them a reliable choice for various applications.
Features and Benefits:
•Connector type: Angled male and female connectors.
•Housing material: Plastic.
•Protection degree: IP65.
•Halogen free.
•Environmental product compliance: RoHS compliant.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Number of poles | 8 |
| Pin arrangement | 1:1, numbered cores |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 1 m |
| Core cross-section | 2.5 mm² |
| Insulation | PVC |
| Line type | Helukabel JZ-500 10G2.5 or similar |
| Number of wires | 10 |
| Outside diameter | 14.8 mm |
| Sheath material | PVC |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
